PCIe x16 Gen4 with ReDriver to OCulink 8i Dual Port Add in Card

$188.75
Availability: In stock
Only 1 left
Part #
OCU-1992-X16

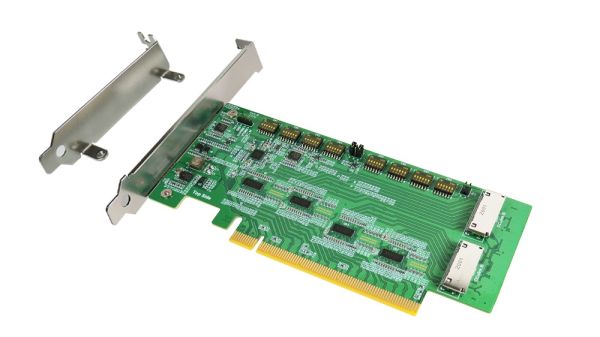

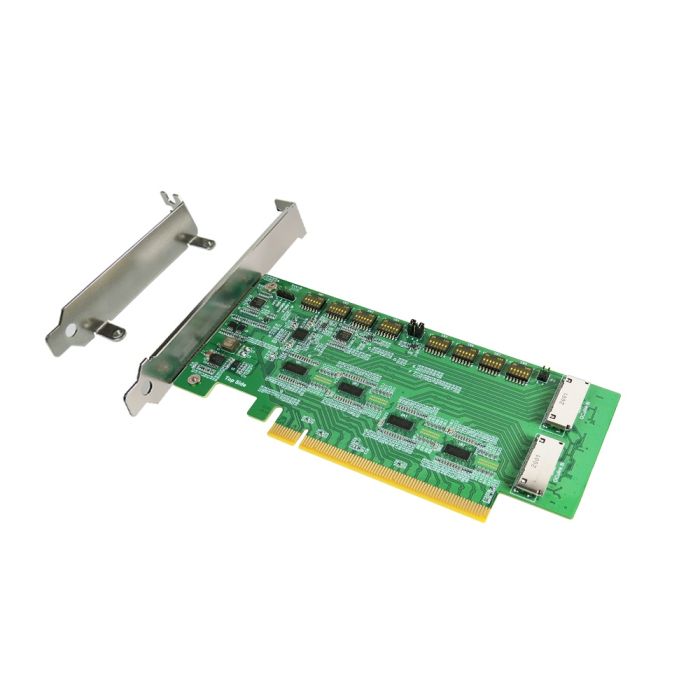

PCIe x16 Gen4 contains built-in ReDriver and SFF-8612 8i connector x2 pcs. The ReDriver is used to enhance PCIe 4.0. The unit supports different topologies.

PCIe x16 Gen4 with ReDriver contains SFF-8612 8i connector x2pcs, PCIe 100MHz Clock buffer, ReDriver to extend PCIe 4.0, WAKE# Auto-Bidirectional Bus Buffer, PERST# Bus Buffer, SMBus Switch(Address: 0x70), SMBus I/O Expander(Address: 0x20), CLKREQ# Auto-Bidirectional Bus Buffer, 3.3V Power Load Switch, 12V to 3.3V, 5.5A PWM Power controller, PWRBRK# Bus Buffer to perform better with different OS and devices. OCulink 8i Dual Port Add in Card is feasible with PCI_Express_OCuLink_1.0a and SFF-9402 Rev1.1.

More Information
Part # OCU-1992-X16
Bar Code (UPC) 611851926199
Specifications

PCIe x16 Gen4 with ReDriver to OCulink 8i Dual Port Add in Card

Description :

  • OCulink 8i(SFF-8612) to PCIe x16 Gen4 convert
  • Built-in SFF-8612 8i connector x2pcs, pin define by SFF-9402 Rev1.1
  • Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
  • The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
  • Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for OCulink 8i(SFF-8612) to drive longer cable length. It may be buffered and fanned out to the OCulink 8i(SFF-8612) clock pin.
  • Built-in SMBus Switch(Address: 0x70) with Reset Funtion for OCulink 8i(SFF-8612) SMBus communication
  • Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote OCulink 8i (SFF-8612) Reset signals.
  • Supports PCIe PERST# management to control OCulink 8i(SFF-8612) Reset signals.
  • Built-in PERST# Bus Buffer to be used over longer cable length.
  • Built-in WAKE# Auto-Bidirectional Bus Buffer to be used over longer cable length.
  • Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used over longer cable length.
  • Built-in PWRBRK# Bus Buffer to be used over longer cable length.
  • Built-in 12V to 3.3V, 5.5A PWM Power controller
  • Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
  • The WAKE# signals power supply can choose +3.3V or 3.3VAUX, the default is 3.3VAUX
  • D1 Green LED on indicates AIC ready
Specifications :
  • PCI Express Base Specification Rev 4.0
  • PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
  • Compliant with Support SFF-9402 Rev1.1
  • Compliant with PCI_Express_OCuLink_1.0a
Micro SATA Cables PN # OCU-1992-X16
