16 Pin Micro SATA

This is a 16 Pin micro SATA cable eSATA DATA cable with a USB Y cable for 5 V and 3.3V Power. This unit contains a1.5 Amp Converter for higher density drives that require more power.

The Cable assembly is for a Micro SATA 1.8-inch form factor Solid State Drive (SSD) or Hard Disk Drives (HDD).

Micro SATA 1.8 Inch drive adapter cable all USB. Power and DATA are all transferred through USB. Easy to use USB interface supports hot plug and play no external power supply needed. Item # MS16PUSB1CBL.

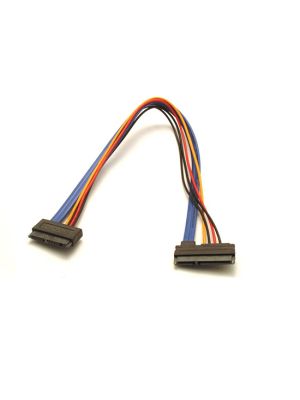

Micro SATA 16 pin Female to 22 Pin Right Angle SATA III Female Cable - 5 Inches

This assembly can be used to power a 2.5 Inch Drive using a Micro SATA 16 pin SATA male connector off a Mother Board, or to Power a Micro SATA 1.8 Inch drive from a 2.5 Inch Male Connector on a Mother Board that Supplies 3.3V.

The Micro SATA connector is a 16 positions socket, including 7 positions with 1.27 mm pitch for signal and 7+2 positions with 1.27 mm pitch for power requirements.  The 7 pin SATA III receptacle connector supports system data applications.  The 15 pin Male plug connector for power can be used for both 5V or 3.3V drives.  The 15 pin female socket the cable plug connects to needs to support both 5V and 3.3V
