MSATA Adapters / mini PCI-E

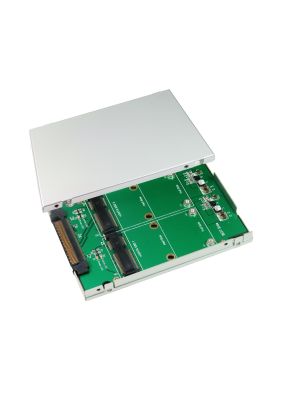

The unit provides 2-port Mini PCI-e SSD connector, built-in 2.5-inch shell SATA II high-performance array card. It provides hardware to setup the RAID level, no driver, BIOS or software required for RAID installation, can be switched to RAID 0, RAID 1, JBOD three mode operation settings.

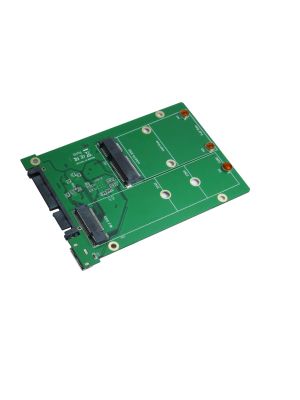

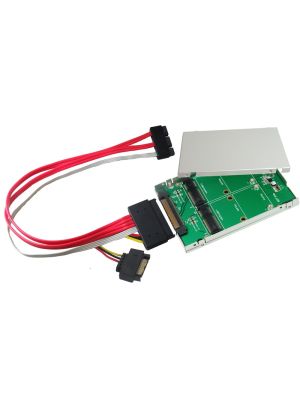

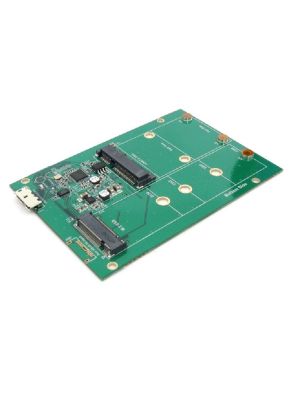

‌2.5" SATA Express to M.2 (M-key) and mSATA Adapter with new dual port cable

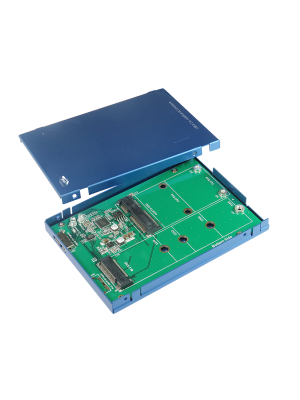

3.5" SATA Dual Port to M.2 SSD x2 & mSATA SSD x2 Adapter with 3.5" Metal Frame

IDE to mini PCI-e (PATA) SSD adapter with PATA 2.5” SSD Housing. This unit uses a 2.5" ultra-lightweight aluminum material shell, coupled with the mini PCI-e(PATA) SSD combination to IDE adapter. When assembled, it is a standard 2.5” SATA SSD.

Mini Extender to USB with Flex Cable is a debug and test tool to extend USB port from MiniCard (mPCIe) slot. Design the FFC (Flat Flexible Cable) cable for flexible use.

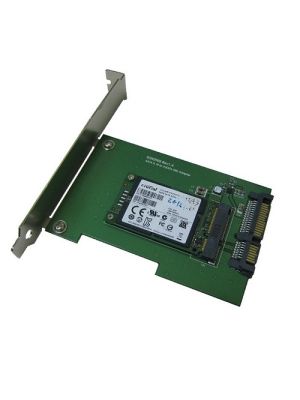

This unit is a SATA to mSATA adapter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections.

Mini PCI-E Module to USB 5 Pin Port

The mini PCIe extender is a debug and test tool.  The design of the FFC (Flat Flexible Cable) cable is for flexible use.  Not only for used for a full-size Mini Card adapter but also for Half-size Mini Cards by removing the extra full-size extensions. The mini PCI-Extender card is designed to minimize the signal degradation effects of the extender by proven design techniques.  It is also a powerful tool for engineers and factory tests.

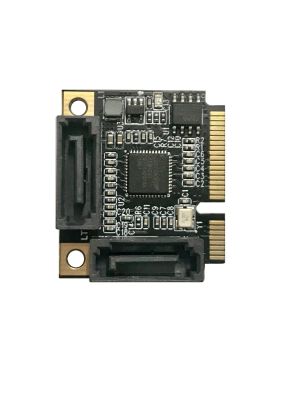

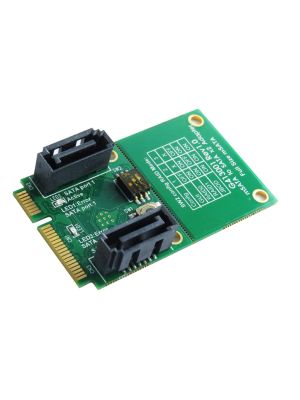

RAID card offers SATA 3 interface, built-in 2-port SATA 7-pin connector, can be combined two SATA SSD into RAID 0, RAID 1, JBOD mode.

The SATA II, III to mini PCI-e SSD adapter is designed to provide an interface between the SATA II, III and the mini PCI-e 52-pin Bus SATA interface standard.   Works with DOS, Windows 95, 98, XP, 2000, Win 7, Linux, Unix, allowing the operating system to boot and run from a mSATA module.

mSATA to 2.5 inch SATA adapter which allows users to operate any mSATA mini PCI-e SSD 70 MM in any standard SATA host controller.

This adapter is an mSATA SSD HDD to 20+6pin as a SanDisk/Toshiba/Intel SSD for Lenovo X1 Carbon Ultrabook. It is used to convert mSATA SSD as 26 Pin SSD for Lenovo X1 Carbon Ultrabook.

This mSATA to 7 Pin SATA adapter is a converter tool for mSATA interfaces. It allows you connect any SATA device to an mSATA slot. It allows a user to use a standard SATA hard device to mSATA host in a Desktop or Laptop with no drivers required. Please note, it is not compatible with Mini PCIe slot.

Includes: Extender bracket

This unit is an mSATA to a 1.8 micro SATA Adapter Card.  The card is compliant with 1.8 Inch Micro SATA specification.  It supports 3.3 Volt Mini PCI-e SSD mSATA Modules.

The mSATA to 7 Pin SATA adapter is a converter tool for mSATA interface. It allows you connect any SATA device to the mSATA slot. This is a low profile flat version.

This mSATA+ SATA 3 HDD/SSD PCI-e Express Controller Adapter Card supports 1 Ports mSATA SSD, 1 port SATA HDD at speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
