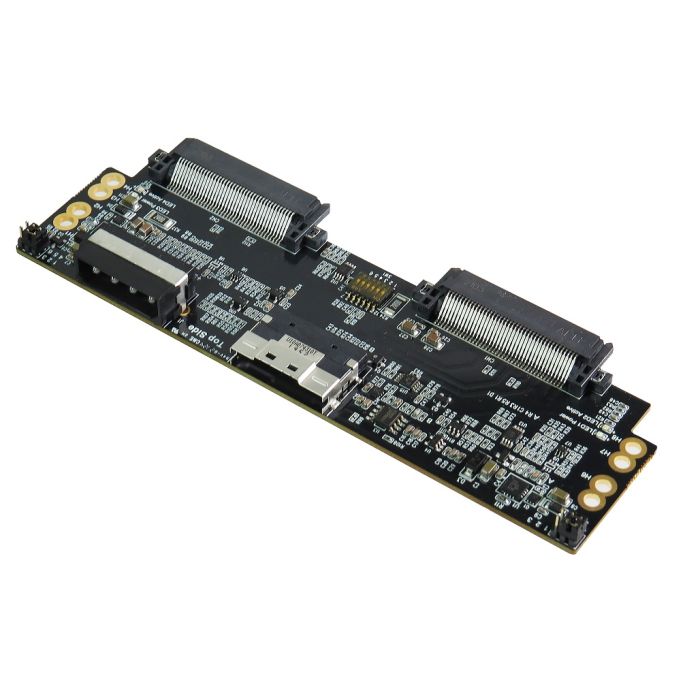

SlimSAS 8i (SFF-8654) PCIe 4.0 to U.3 Dual port for Broadcom MegaRAID & HBA Tri-Mode Storage Adapter

$82.75
Availability: In stock
Only 2 left
Part #
SLM-1869-U3

SlimSAS 8i(SFF-8654) PCIe 4.0 to U.3 SFF-8639 Dual port Card features an SFF-8654 connection to connect over existing SFF-8639 Dual ports

This adapter supports both SFF-8644 (SlimSAS) and SFF-8645 (Mini-SAS) cables, allowing you to use existing cables in your infrastructure. The SlimSAS 8i offers up to 2x the performance of its previous generation with the support of 16Gb/s per lane in 4x Gen3 lanes or 32Gb/s per lane in 2x Gen4 lanes, which can help reduce latency for high-speed data transfer applications such as virtualization and video surveillance. The SlimSAS 8i is ideal for use within blade servers where space is limited but still requires high-performance storage connectivity. It's also great for servers with multiple internal drives that need additional external connection options like e-SATA or SAS external drive enclosures through the two ports on the rear panel of the motherboard. The SlimSAS 8i supports RAID 0, 1, 5, 6 and 10 modes and features a PCIe Gen3 x8 host interface with up to 32Gb/s bandwidth per lane or 64 Gb/s total bandwidth. Micro SATA Cables Part#SLM-1869-U3

More Information
Part # SLM-1869-U3
Bar Code (UPC) 611851925420
Specifications

SlimSAS 8i(SFF-8654) PCIe 4.0 to U.3 Dual port for Broadcom MegaRAID & HBA Tri-Mode Storage Adapter

Features :

  • U.3 dual ports to SlimSAS 8i (SFF-8654) convert
  • Built-in SlimSAS 8i, 15u” connector, pin-out defined by SFF-9402 Rev1.1
  • Built-in two U.3 SFF-8639, 30u” connector
  • Built-in two 12V Hot Plug Power with eFuse protection for U.3 dual ports
  • Programmable Current Limit: 6.5A
  • Programmable Inrush Current Slew Rate
  • Thermal shutdown protection and fault alert
  • Back-to-Back (B2B) FET Operation
  • Supports U.3 to PCIe CLKREQ#, WAKE#
  • Supports U.3 PWRDIS Implementation
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer
  • Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters.
  • Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters.
  • LED2, LED4 Green LED on indicates U.3 NVMe SSD power ready
  • LED1, LED3 RED LED Blinking indicates U.3 active status

Specifications :

  • Compliant with NVM Express 1.4
  • Support PCI Express Base Specification Rev 4.0
  • Support SSD_Form_Factor_Version1_a
  • Compliant with PCIe_SFF-8639_R3.0_V1.0
  • Compliant with SFF-TA-1001 Rev1.1
  • Compliant with SFF-8654 Rev1.2
  • Compliant with SFF-9402 Rev1.1

Micro SATA Cables PN # SLM-1869-U3

  • Unit can be used with Micro SATA Cables Part #SLM-1957-8I

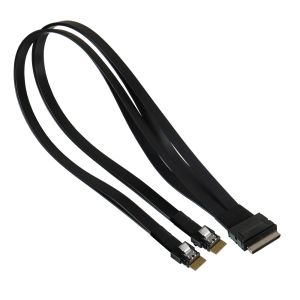

  • PCIe Gen 4 SlimSAS (SFF-8654) 8i to OCulink (SFF-8611) 8i Cable
  • Unit can be used with Micro SATA Cables Part #OCU-1884-8I
  • PCIe x8 with Re-Driver to Oculink 8i Add-in-Card PCIe Gen 4
