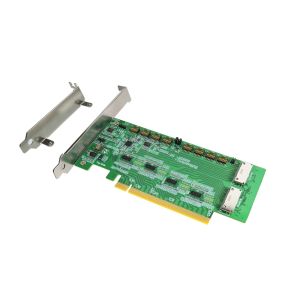

SlimSAS 8i Dual port to PCIe x16 Slot Adapter PCIe 4.0

Availability: In stock
Only 1 left
Part #

This PCIe x16 adapter is designed to extend dual-port signals to a PCIe x16 slot. It has a built-in ATX power supply connector and supports Broadcom series products. It has passive current limiting features to protect against overcurrent/short-circuit conditions, and also has hot swappable components for quick and easy system upgrades.

The SlimSAS 8i Dual port to PCIe x16 Slot Adapter PCIe 4.0 is a hardware device that allows for the connection of a SlimSAS 8i dual-port SAS (Serial Attached SCSI) controller card to a PCIe (Peripheral Component Interconnect Express) x16 slot on a computer motherboard. The adapter provides a PCIe 4.0 interface, which is the latest version of the PCIe standard and offers increased bandwidth and faster data transfer rates compared to previous versions. The SlimSAS 8i connector is a high-density, low-profile interface commonly used for connecting SAS drives in servers and storage systems. The dual-port design allows for redundancy and increased data throughput, which is important in high-performance computing and storage applications. By using this adapter, users can take advantage of the speed and flexibility of the PCIe interface while utilizing their existing SlimSAS 8i SAS controller card. Micro SATA CAbles PN # SLM-2022-2X16

More Information
Part # SLM-2022-2X16
Bar Code (UPC) 611851926427

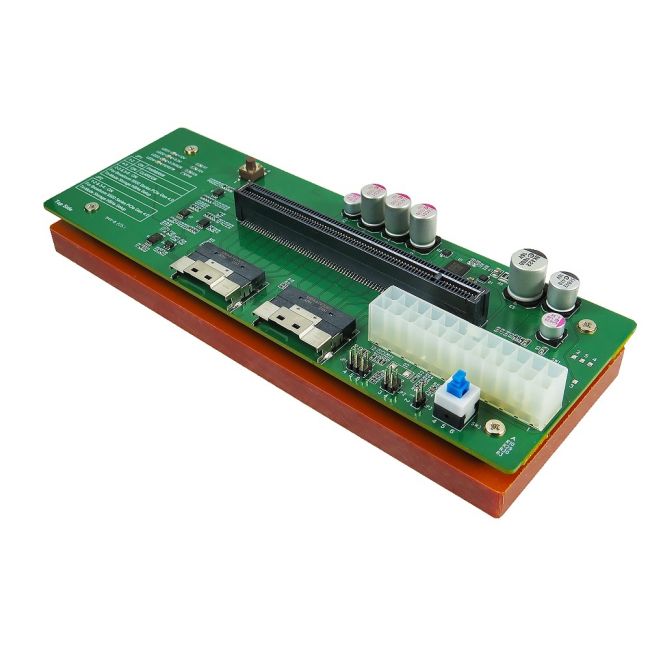

SlimSAS 8i Dual-Port to PCIe x16 Gen4 slot Adapter


• SlimSAS 8i dual port to PCIe x16 signals extension

• Built-in ATX 24-pin Power supply connector


o Manual Switch ON or Jumper Short for ATX 24-pin Power supply ON

• Built-in SlimSAS 8i(SFF-8654) with 30 microinches connector 2 pcs

• Built-in PCIe x16 with 15 microinches of gold on mating end Slot

• Built-in MAX5954A PCI Express Power Hot-Plug Controller

o Hot Swaps +12V, +3.3V, and 3.3V Auxiliary Power Rail

o Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions

o Drives two external n-channel MOSFETs to control the +12V and +3.3V main outputs

• Built-in Conductive Polymer Aluminum Solid Capacitors For 75W PCIe x16 Slot Power Supply Rail Requirements as follows :

o +12V Voltage Supply Current Capacitive Load : 5.5 A Current, 1470 µF

o +3.3 Voltage Supply Current Capacitive Load : 3 A Current, 3300 µF

o 3.3aux Voltage Supply Current Capacitive Load : 375 mA Current, 330 µF

• Built-in SMBus Hot Swappable 2-Wire Bus Buffer

• Built-in PCIe PERST# Bus Buffer and manul switch

• Built-in PCIe WAKE# Bidirectional Translator Bus Buffer

• Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer

• Built-in PCIe PWRBRK# Bus Buffer

• LED1 Green On indicates +12V power ready for PCIe x16 Slot

• LED2 Green On indicates +3.3V power ready for PCIe x16 Slot

• LED3 Green On indicates 3.3Vaux power ready for PCIe x16 Slot

• LED4 Green On to OFF indicates PERST# Normal (Function intentionally inverted)


• Support PCI Express Base Specification Rev 4.0

• Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with SFF-8654 Rev1.2

• Compliant with SFF-9402 Rev1.1

Supports the following Broadcom series products:

-Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA Tri-Mode Storage Adapters:

• MegaRAID 9670W-16i

• MegaRAID 9670-24i

• MegaRAID 9660-16i

• eHBA 9620-16i

• eHBA 9600-24i

• eHBA 9600-16i

• eHBA 9600-8e8i

-Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters:

• MegaRAID 9560-16i

• MegaRAID 9560-8i

• MegaRAID 9580-8i8e

• HBA 9500-16i

• HBA 9500-8i

• P411W-32P

Micro SATA Cables # SLM-2022-2X16
