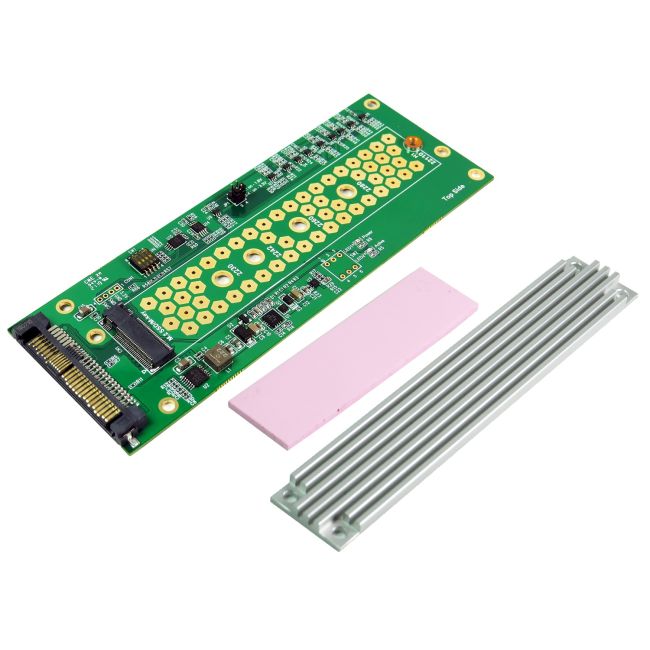

PCIe Gen4 U.2(SFF-8639) to M.2 NVMe Adapter

‌PCIe Gen4 U.2(SFF-8639) to M.2 NVMe Adapter

The PCIe Gen4 U.2(SFF-8639) to M.2 NVMe Adapter is a high-performance device that allows users to connect an M.2 NVMe solid-state drive (SSD) to a U.2(SFF-8639) interface on their motherboard or server. This adapter is designed to take advantage of the high-speed PCIe Gen4 interface, delivering fast data transfer rates and low latency.

PCIe Gen4 interface for fast data transfer rates Supports M.2 NVMe SSDs in 2280, 2260, and 2242 form factors U.2(SFF-8639) interface for easy connection to motherboards and servers Supports TRIM and SMART commands for enhanced SSD performance monitoring Built-in thermal pad for improved heat dissipation Supports PCIe bifurcation for flexible configuration options LED indicators for power and activity status Low-profile design for use in small form factor systems Plug-and-play installation with no drivers required Supports hot-swapping for easy SSD replacement Supports RAID configurations for increased data redundancy and performance Compatible with Windows, Linux, and macOS operating systems RoHS compliant for environmentally friendly operation Compact and lightweight for easy portability Durable construction for long-lasting use

Features :

M.2 NVMe to U.2(SFF-8639) convert

Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1

PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD

◆ 5.5A maximum output current and SMBus hot plug Power protection.

◆ Output Discharge Control

◆ The output overcurrent protection(OCP)

◆ Undervoltage lock out protection(UVLO) monitor

◆ Over/Under Voltage Protection

◆ Thermal shutdown protection

◆ ESD HBM (Human Body Mode)/500V

Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection

Supports M.2 3.3V&1.8V supply

Supports M.2 VIO_CFG Signal

Supports M.2 PERST# Signal 3.3V and 1.8V Switching

Supports M.2 CLKREQ# Signal 3.3V and 1.8V Switching

Supports M.2 WAKE# Signal 3.3V and 1.8V Switching

Supports PWRDIS Signal from U.2 pin to M.2 pin

Supports M.2 /1.8V to U.2/3.3V SMBCLK, SMBDATA Level Shift

Supports M.2 /1.8V to U.2 /3.3V SMBCLK, SMBDATA isolated, repeater

Built-in SMBUS EEPROM 64KB

D1 Green LED on indicates M.2 NVMe SSD power ready

D2 RED LED Blinking indicates M.2 active status

Specifications :

•  Compliant with NVM Express 1.3a

•  Support PCI Express Base Specification Rev 4.0

•  Support SSD_Form_Factor_Version1_a

•  Compliant with PCI Express M.2 Specification Version 1.2

•  Compliant with PCIe SFF-8639 Module Specification Rev 3.0

•  Compliant with SFF-TA-1001 Rev1.1


Supports the following form factor M.2(NGFF) SSD:

Type 2242-D2-B-M: 42mm(L) x 22mm(W)

Type 2260-D2-B-M: 60mm(L) x 22mm(W)

Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Type 22110-D2-B-M: 110mm(L) x 22mm(W)

Unit can be used with Micro SATA Cables Part#OCU-1690-GEN4

PCIE GEN4 X4 Slot to Oculink Passive Adapter

Unit can be used with Micro SATA Cables Part# OCU-1710-U2

PCIe Gen 3 / 4 Lane to Oculink SFF-8612 Adapter

Unit can be used with Micro SATA Cables Part#U2-1727-GEN4

Slimline SAS 4-Lane to U.2 (SFF-8639) PCIe Gen4 Cable

Micro SATA Cables PN # U2-1858-GEN4
