M.2 M-key PCIe 4.0 with ReDriver to MCIO 38P Adapter

$72.75
Availability: In stock
Only 31 left
Part #
MCIO-2005-M2

MCIO 38P to M.2 M-key PCIe 4.0 adapter with built-in ReDriver & SMBus repeater. Supports Windows 7/8/10 & UEFI 2.3.1+. Compliant with SFF-TA-1016 & SFF-9402 specs.

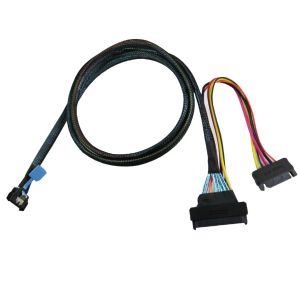

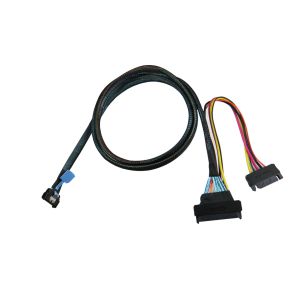

The PCIe Gen4 Mini Cool Edge IO 38pin to U.2 (SFF-8639) Cable 50 CM is a high-speed data cable designed to connect devices that support the PCIe Gen4 interface. It features a 38-pin Mini Cool Edge IO connector on one end and a U.2 (SFF-8639) connector on the other end.

The Mini Cool Edge IO connector is a compact, low-profile interface commonly used in small form factor systems, such as laptops and embedded devices. It is capable of delivering high-speed data transfer rates of up to 16 Gbps per lane, making it suitable for a variety of applications that require fast and reliable data transfer.

The U.2 (SFF-8639) connector is a standard interface used for connecting solid-state drives (SSDs) to a computer system. It supports the PCIe Gen3 and Gen4 interfaces and can deliver data transfer rates of up to 32 Gbps. The U.2 interface is designed for enterprise-level applications that require high-speed data access and storage, such as data centers and cloud computing environments.

The cable itself is 50 centimeters in length, providing sufficient flexibility for easy installation and cable management. The cable is shielded to reduce electromagnetic interference and ensure reliable data transfer over long distances. It is also designed to be durable and resistant to wear and tear, making it suitable for use in harsh environments.

Micro SATA CAbles Part# MCIO-2005-M2

More Information
Part # MCIO-2005-M2
Bar Code (UPC) 611851926298
Specifications

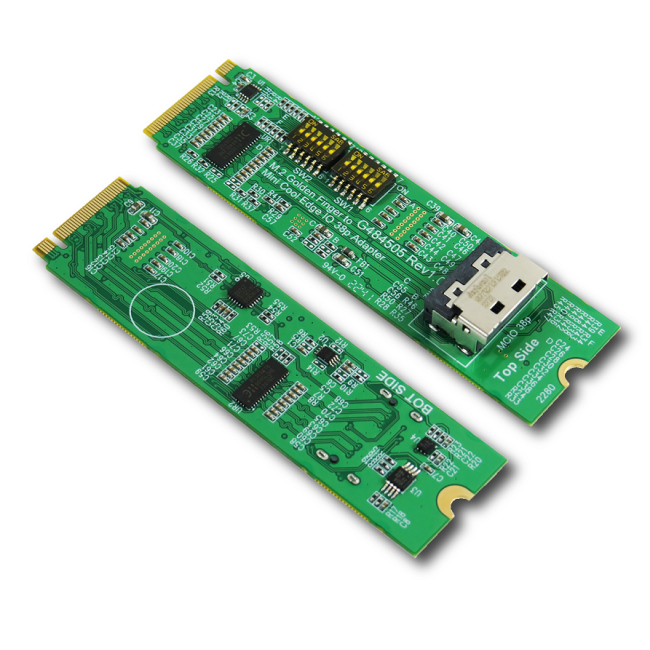

M.2 M-key PCIe 4.0 with ReDriver to MCIO 38P Adapter

Features :

• MCIO 38P (SFF-TA-1016) to M.2 PCIe 4.0 convert

• Built- in MCIO 38P connector with 30u”(0.76um) min Au mating area plating

• Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals

• Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable

• Built- in SMBus repeater and Voltage level shift with Hot swappable level translating

• Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin

• Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B8 pin

• Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A12 pin

• Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B9 pin

 Specifications :

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with SFF-TA-1016 Rev 1.0

• Compliant with SFF-9402 Specification Version 1.1

• PCI Express M.2 Spec Rev4.0 Ver1.0 11052020 NCB

Design follows the Intel Pinout.

Operating System Support :

• Windows 7

• Windows 8 &8.1

• Windows 10

• UEFI 2.3.1 or late

Micro SATA Cables PN # MCIO-2005-M2
