5 ✓ In stock

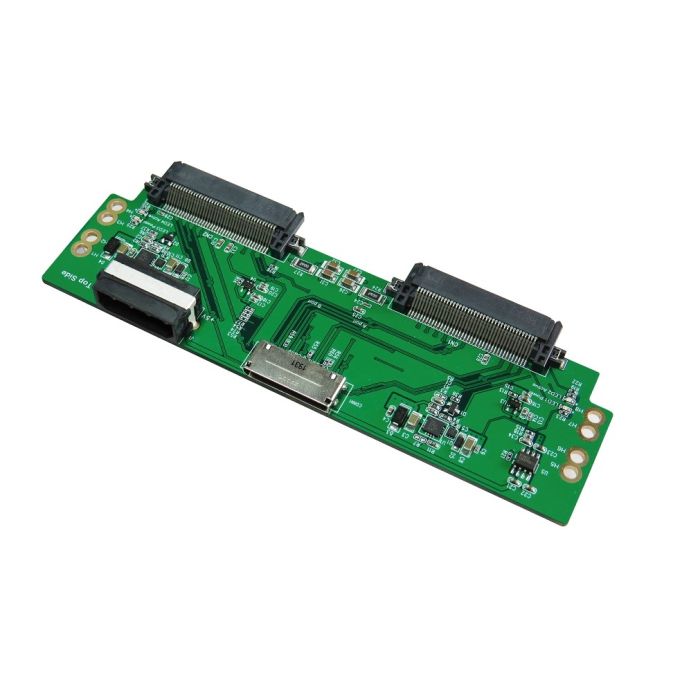

Oculink 8-Lane to U.2 NVMe Dual Port Adapter for Broadcom AIC

Part #OCU-1689-8L
$66.75

OCulink 8-Lane to U.2 NVMe Dual Port Adapter for Broadcom AIC - High-Speed OCulink NVMe Adapter for Dual-Port Connectivity

More Information

Part # OCU-1689-8L
Bar Code (UPC) 646791004522
Specifications

‌Oculink 8-Lane to U.2 NVMe Dual Port Adapterfor Broadcom AIC

Specifications :

  • Built-in SFF-8612 8i(OCulink) Female connector
  • Built-in U.2 SFF-8639 Female connector x2
  • LED1, LED3 Green LED on indicates U.2 SSD power ready
  • LED2, LED4 Red LED on indicates U.3 SSD activity
  • Built-in +12V Hot Plug Power Module to protect U.2 NVMe SSD destroied
  • Provides 3.3Vaux for U.2 NVMe SSD SMBUS Access
  • Provides 3.3Vaux for U.2 NVMe SSD SMBUS Access OCulink
  • Compliant with NVM Express 1.0a
  • Supports PCI Express Base Specification Rev 3.1
  • Supports SSD_Form_Factor_Version1_a
  • Compliant with PCI_Express_OCuLink_1.0a
  • Compliant with PCIe_SFF-8639_R3.0_V1.0
  • Compliant with SFF-9402 Specification Rev 1.0
  • Compliant with Broadcom MegaRAID and HBA Tri-mode Storage Adapter
  • Compliant with Intel TriMode Adapter
Micro SATA Cables PN # OCU-1689-8L
