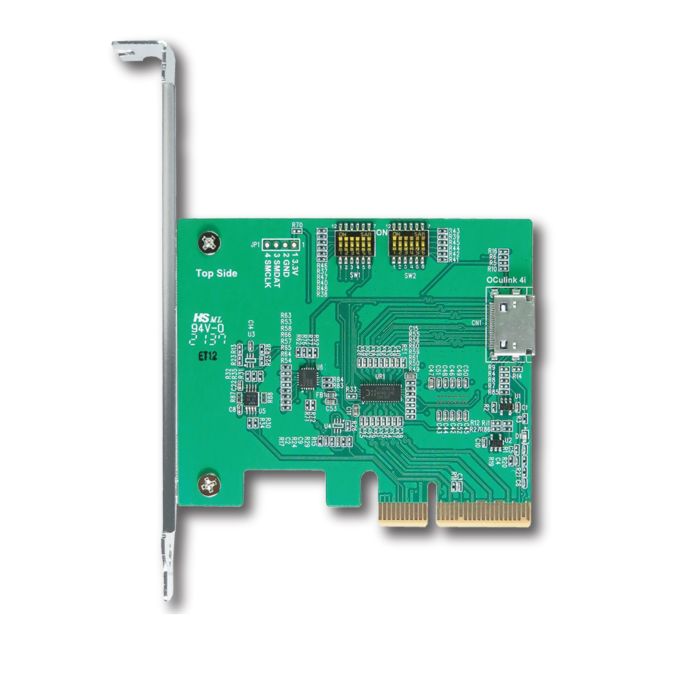

PCIe x4 Gen4 with ReDriver to OCulink 4i Host Bus Adapter

‌PCIe Gen4 x4 + Redriver to Oculink 4i

Features :

• Oculink4i (SFF-8612) to PCIe convert
• Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
• Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
• Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
• Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
• Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
• Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
• Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
• Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
• Supports OCulink pin out 5V, 3.3V ※ D3 Green LED on indicates DP9301 adapter ready

Specifications :

• PCI Express Base Specification Rev 4.0
• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
• Support SSD_Form_Factor_Version1_a
• Compliant with SFF-8612 Specification Version 3.5
• PCI_Express_OCuLink_1.0a

Operating System Support :

• Windows 7
• Windows 8 &8.1
• Windows 10
• UEFI 2.3.1 or later

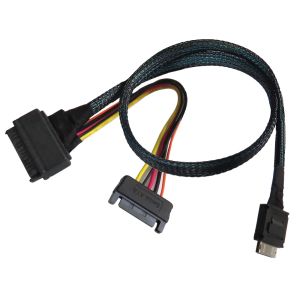

This unit can be used with Micro SATA Cables Part# OCU-1710-U2

PCIe Gen 3 / 4 Lane to Oculink SFF-8612 Adapter

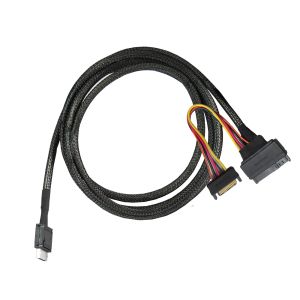

This unit can be used with Micro SATA Cables Part# U2-1858-GEN4

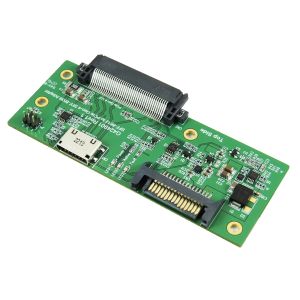

PCIe Gen4 U.2(SFF-8639) to M.2 NVMe Adapter

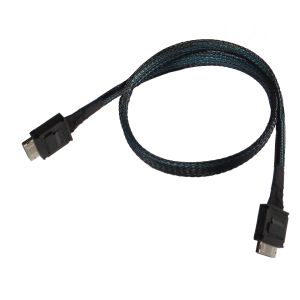

Unit can be used with Micro SATA Cables Part# OCU-1690-GEN4

PCIE GEN4 X4 Slot to Oculink Passive Adapter
