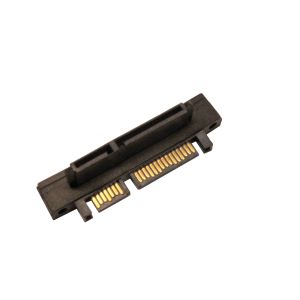

SATA 22 Pin Male to 22 Pin Female Left Angle Adapter

‌Overview

The SATA 22 Pin Male to 22 Pin Female Left Angle Adapter is designed to provide a flexible and efficient solution for connecting SATA devices in tight or constrained spaces. This adapter features a left-angle design, allowing for easier cable management and improved access to SATA ports in compact or densely packed systems.

Technical Specifications

Connector Type:

Connector A: SATA 22-pin male

Connector B: SATA 22-pin female

Connector Orientation:

Left-angle design to facilitate connections in tight or challenging spaces

Data Transfer Rate:

Supports SATA III (6.0 Gbps), SATA II (3.0 Gbps), and SATA I (1.5 Gbps) standards

Cable Construction:

Conductors: High-quality internal wiring to ensure optimal signal integrity and data transfer

Insulation: Durable materials to protect against electrical interference and physical wear

Shielding: Adequate shielding to minimize electromagnetic interference (EMI) and crosstalk

Connector Design:

Molded connectors with a left-angle design to facilitate easier access and improve cable management in tight spaces

Secure fit with latch mechanisms to ensure stable and reliable connections

Compatibility:

Compatible with SATA devices and interfaces that use 22-pin connections, including hard drives, SSDs, and optical drives

Suitable for motherboards and SATA controllers featuring 22-pin ports

Operating Temperature Range:

-20°C to 80°C (-4°F to 176°F), suitable for use in various environmental conditions

Compliance:

RoHS (Restriction of Hazardous Substances) compliant, ensuring the adapter is free from hazardous materials

Applications

Internal Storage Solutions: Ideal for connecting SATA drives in cases where space is limited or where a standard straight adapter would be obstructed.

Custom Builds: Perfect for custom PC builds that require precise cable routing and efficient use of space.

System Upgrades: Useful for upgrading systems where the standard connector orientation would be impractical or cause interference.

Compact or High-Density Systems: Suitable for use in systems with tight internal layouts, where standard connections are difficult to access.

Key Features

Left-Angle Design: Provides a 90-degree angle to facilitate connections in tight or hard-to-reach areas, improving overall cable management.

High-Speed Performance: Supports SATA III for fast and reliable data transfer rates up to 6.0 Gbps.

Secure and Durable: Features molded connectors with latching mechanisms to ensure stable and secure connections, reducing the risk of accidental disconnections.

Versatile Compatibility: Bridges SATA devices and interfaces with ease, accommodating various internal configurations and setups.

Compact Form Factor: Designed to fit into confined spaces, making it an ideal choice for small form factor builds or densely packed systems.
