SATA 22 Pin Male to 22 Pin Female Right Angle Adapter

Overview

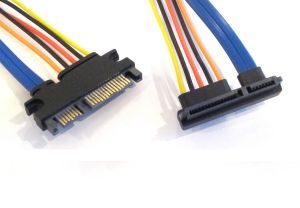

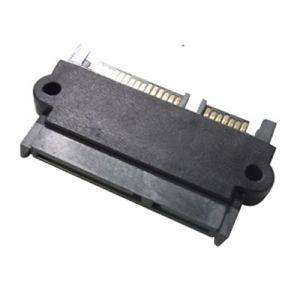

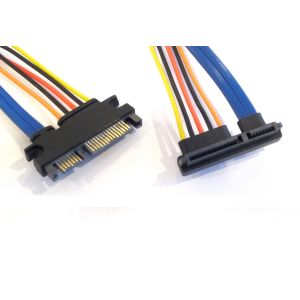

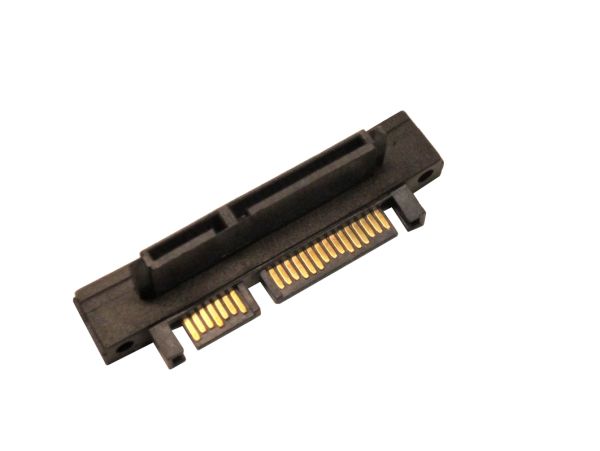

The SATA 22 Pin Male to 22 Pin Female Right Angle Adapter is designed to facilitate connections between SATA devices and ports in tight or confined spaces. This adapter features a right-angle design to enhance cable management, reduce strain on connectors, and ensure a secure connection in various internal configurations.

Technical Specifications

Connector Type:

Connector A: 22-pin SATA male (right-angle design)

Connector B: 22-pin SATA female (straight or right-angle design, depending on specific configuration)

Connector Orientation:

Right-angle design to improve accessibility and cable management in constrained spaces

Data Transfer Rate:

Supports SATA III (6.0 Gbps), SATA II (3.0 Gbps), and SATA I (1.5 Gbps) standards

Cable Construction:

Conductors: High-purity copper conductors to ensure optimal signal integrity and reliable data transfer

Insulation: Durable PVC insulation for flexibility and protection against electrical interference

Shielding: Adequate shielding to minimize electromagnetic interference (EMI) and crosstalk

Connector Design:

Right-Angle Male Connector: Designed for use in tight or hard-to-reach areas, facilitating easier cable management and reducing connector strain

Female Connector: Molded design to ensure a stable and secure connection with standard SATA cables or devices

Compatibility:

Compatible with SATA devices and interfaces that use 22-pin connections, including hard drives, SSDs, and optical drives

Suitable for motherboards and SATA controllers with 22-pin SATA ports, particularly in situations where standard straight connectors are obstructed or impractical

Operating Temperature Range:

-20°C to 80°C (-4°F to 176°F), suitable for various environmental conditions

Compliance:

RoHS (Restriction of Hazardous Substances) compliant, ensuring the adapter is free from hazardous materials

Applications

Internal Storage Solutions: Ideal for connecting SATA drives in cases with limited space or where a straight connector would be obstructed.

Custom Builds: Perfect for custom PC builds requiring optimized cable routing and efficient use of space.

System Upgrades: Useful for upgrading systems where the right-angle design allows for easier access and installation in tight spaces.

Compact or High-Density Systems: Suitable for systems with constrained internal layouts, where traditional connectors may not fit or be practical.

Key Features

Right-Angle Design: Provides a 90-degree angle to facilitate connections in confined spaces, improving overall cable management and accessibility.

High-Speed Performance: Supports SATA III standards for reliable and efficient data transfer rates up to 6.0 Gbps.

Secure and Durable: Features molded connectors with a robust design to ensure stable and reliable connections, minimizing the risk of accidental disconnections.

Enhanced Cable Management: The right-angle design helps to reduce cable clutter and strain on connectors, leading to a cleaner and more organized internal setup.

Versatile Compatibility: Bridges SATA devices and ports with ease, accommodating various internal configurations and setups.
