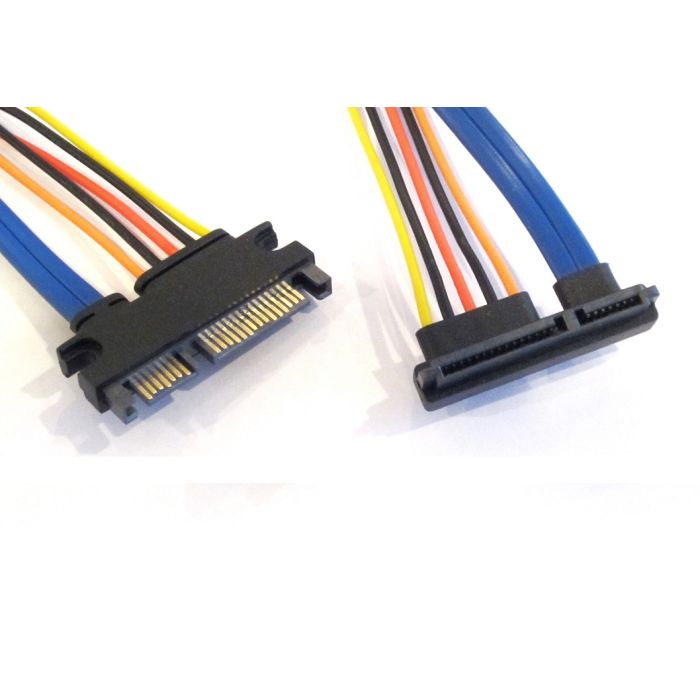

SATA 22 Pin Male to 22 Pin Female Right Angle Cable 12 Inches

Rating:
100 % of 100
$1.50
Availability: In stock
Only 202 left
Part #
P22PMWV22PFRA-12

This is a 22 pin SATA male to female Right Angle power and data extension cable.The 22 pin SATA extension assembly contains both 15 pin Power and 7 pin DATA with both Female and Male connections. The cable is approx. 12 inches in length.

This is a 22 pin SATA male to female Right Angle power and data extension cable.The 22 pin SATA extension assembly contains both 15 pin Power and 7 pin DATA with both Female and Male connections. The cable is approx. 12 inches in length.

Micro SATA Cables PN# P22PMWV22PFRA-12

More Information
Part # P22PMWV22PFRA-12
Bar Code (UPC) 794504814446
Specifications

Product Name: SATA 22 Pin Male to 22 Pin Female Right Angle Cable - 12 Inches

Overview: The SATA 22 Pin Male to 22 Pin Female Right Angle Cable is a specialized extension cable designed to provide a convenient and space-efficient solution for connecting SATA devices. Measuring 12 inches in length, this cable features right-angle connectors on both ends to facilitate easier installation in tight or constrained spaces. It is ideal for use in custom PC builds, data storage systems, and server environments where space management and cable routing are critical.

Technical Specifications:

  • Type: SATA Extension Cable

  • Length: 12 inches (30.48 cm)

  • Color: Commonly black or other standard colors

  • Connectors:

    • Male Connector:
      • Type: SATA 22 Pin (Male), Right Angle
      • Function: Connects to the SATA port on the motherboard, storage controller, or other SATA-enabled devices
    • Female Connector:
      • Type: SATA 22 Pin (Female), Right Angle
      • Function: Connects to the SATA data port on the SATA device, such as a hard drive or SSD
  • Design:

    • Cable Construction: Constructed with high-quality materials to ensure reliable data transmission and durability
    • Insulation: Durable insulation protects against electrical interference and physical wear
    • Connector Build: Right-angle connectors reduce strain on the cable and connectors, offering a neat and organized installation
  • Performance:

    • Data Transfer Rate: Supports standard SATA data transfer rates, ensuring efficient and reliable performance for connected devices
    • Compatibility: Designed to work with standard SATA 22-pin connections, making it versatile for various setups
    • Power Delivery: The cable handles data transfer; separate power connections are required for powering devices
  • Applications:

    • Custom PC Builds: Ideal for extending connections between SATA devices and motherboards or storage controllers, especially in tight spaces
    • Data Storage Systems: Useful for managing and organizing SATA connections in data storage arrays where space is limited
    • Server Environments: Provides a clean and efficient solution for connecting SATA devices in rack-mounted or compact server setups

Key Features:

  • Right Angle Connectors: Right-angle connectors reduce cable strain and facilitate easier routing in constrained spaces
  • High-Quality Construction: Ensures durability and reliable performance with robust materials and design
  • SATA 22 Pin Compatibility: Supports standard SATA connections for a wide range of devices and applications
  • Optimal Length: 12-inch length provides flexibility while maintaining an organized and tidy setup

Usage Notes:

  • Ensure that the SATA 22-pin male connector is securely connected to the motherboard or storage controller, and the SATA 22-pin female connector is properly connected to the SATA device
  • Handle the cable with care to avoid bending or damaging the connectors and internal wiring
  • Verify that your SATA devices and ports are compatible with the cable’s specifications for optimal performance

Additional Information:

  • Safety Precautions: Always handle the cable with care to prevent damage to the connectors and internal wiring
  • Compatibility Check: Confirm that your SATA devices and ports support 22-pin SATA connections to ensure reliable data transfer
  • Connection Tips: Properly align and connect all connectors to ensure stable operation and avoid connection issues
