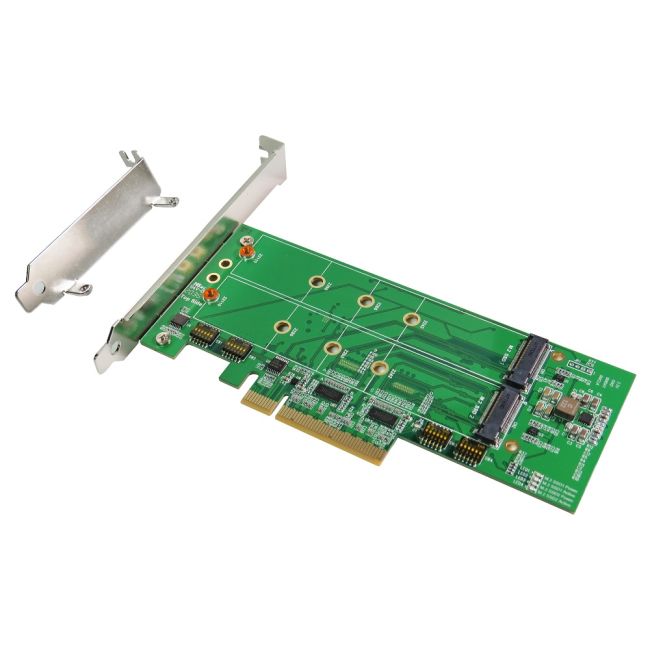

PCIe x8 Gen4 for Bifurcated M.2 NVMe Dual Port AIC

$108.75
Availability: In stock
Only 8 left
Part #
GEN4-1766-X8

PCIe x8 Gen4 Bifurcated M.2 NVMe Dual Port AIC, featuring dual M.2 M-key connectors, 100MHz clock buffer, SMBUS I/O Expander & more. The power IC offers 8A maximum output current and various protections.

The PCIe x8 Gen4 for Bifurcated M.2 NVMe Dual Port AIC is a top-of-the-line solution for connecting two M.2 NVMe drives to a PCI Express 4.0 interface. With two built-in M.2 M-key female connectors, the DP8202 can be offered in two x4 data link width configurations, which require CPU and BIOS support.

This adapter is equipped with a 100MHz clock buffer that is designed to drive longer trace lengths and cables, making it ideal for use in demanding environments. The built-in SMCLK and SMDAT bidirectional buffer repeater, SMBUS I/O expander for SMBRST# & PWRDIS control, and PERST# Bus Buffer Gate also allow for easy and reliable connections.

The PWM synchronous buck converter power IC provides a maximum output current of 8A and is equipped with short circuit protection, in-rush current suppression, thermal shutdown protection, and ESD HBM (Human Body Mode)/2KV for ultimate protection. Each M.2 port also has a 5A current load switch power to protect M.2 NVMe SSDs.

The LED1, LED3 green LED indicates that the M.2 NVMe SSD is powered on, while the LED2, LED4 red LED blinks to indicate that the M.2 SSD is active.

Micro SATA Cables PN #GEN4-1766-X8

More Information
Part # GEN4-1766-X8
Bar Code (UPC) 611851924591
Specifications

PCIe x8 Gen4 for bifurcated M.2 NVMe Dual-port AIC‌

Features :

※ M.2 NVMe to PCI Express 4.0

※ Built-in two M.2 M-key Females connector

※ The AIC can be offered in two x4 data link width configurations

(need CPU and BIOS both support) for dual-port M.2 connector.

※ Built- in 100MHz Clock buffer to drive longer trace lengths and longer cable

※ Built- in SMCLK, SMDAT bidirectional buffer repeater

※ Built- in SMBUS I/O Expander for SMBRST# & PWRDIS control

※ Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable

※ Connect WAKE# from PCIe GF to M.2 connector

※ Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable

※ PWM synchronous buck converter Power IC

  8A maximum output current

  Short circuit protection

  In-rush current suppression

  Thermal shutdown protection

  ESD HBM (Human Body Mode)/2KV

※ Each M.2 port is with 5A current Load switch Power to protect M.2 NVMe SSD

※ LED1, LED3 Green LED on indicates M.2 NVMe SSD power ready

※ LED2, LED4 RED LED Blinking indicates M.2 SSD active status

Micro SATA Cables PN #GEN4-1766-X8
