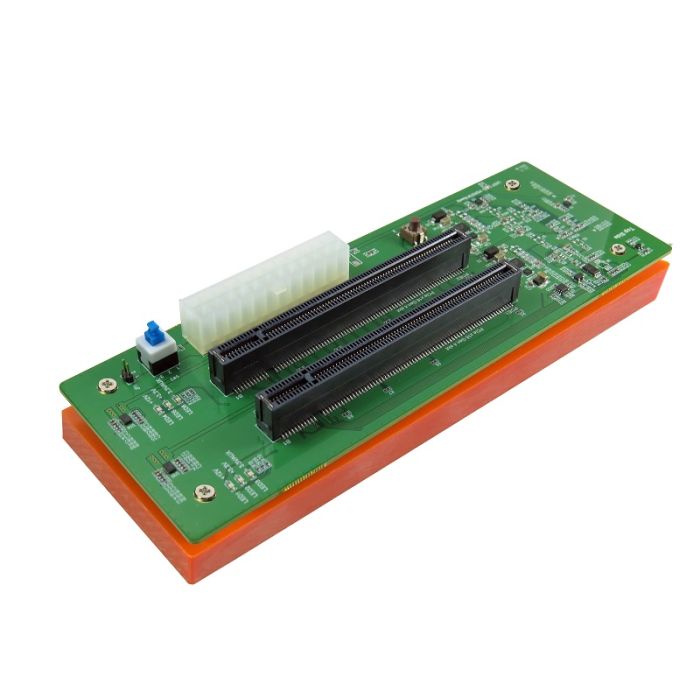

PCIe 4.0 x16 Slot Dual Port Backplane Adapter

$88.75
Availability: In stock
Only 4 left
Part #
PCIE4-2011-X16

Reliable data transfer with PCIe 4.0 x16 Slot Dual Port Backplane Adapter. Built-in ATX 24-pin power supply, gold-plated PCIe x16 slot, & advanced power protection features.

The PCIe 4.0 x16 Slot Dual Port Backplane Adapter is a hardware device designed to expand the number of PCIe 4.0 slots available in a computer system. It is specifically designed to fit into a PCIe 4.0 x16 slot on a motherboard, and features two PCIe 4.0 ports for connecting additional devices.

The adapter is constructed using high-quality materials and utilizes a high-speed PCB design to ensure maximum data transfer rates. It is capable of supporting data transfer rates of up to 16 GT/s per lane, making it suitable for high-performance applications.

The dual port design of the adapter allows for simultaneous data transfer between two devices, reducing latency and improving overall system performance. The adapter is also compatible with a wide range of PCIe devices, including PCIe 4.0, PCIe 3.0, and PCIe 2.0 devices.

The backplane design of the adapter allows for easy installation and removal, making it ideal for use in data centers and other high-density computing environments. The adapter is also equipped with advanced features such as hot-plug support, which allows devices to be added or removed without shutting down the system.

Micro SATA Cables PN # PCIE4-2011-X16

More Information
Part # PCIE4-2011-X16
Bar Code (UPC) 611851926328
Specifications

PCIe 4.0 x16 Slot Dual Port Backplane Adapter ‌

Features :

• PCIe x16 to PCIe x16 signals extension

• Built-in ATX 24-pin Power supply input

• Built-in PCIe x16 with 15 microinches of gold on mating end Slot

• Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V for each slot

- Programmable Current Limit: 6.5A

- Programmable Inrush Current Slew Rate

- Thermal shutdown protection and fault alert

- Back-to-Back (B2B) FET Operation

• PWM synchronous 12V to 3.3V buck converter Power for each slot

 - 4A maximum output current

 - Over Current Protection

 - Under Voltage Protection

 - Under voltage lock out protection (UVLO) monitors

 - Thermal shutdown protection

 - ESD Human Body Mode(HBM)/2KV

• Built-in 3.3V Power Load Switch for PCIe +3.3V

• 12V to 3.3V LDO buck converter Power for PCIe 3.3Vaux for each slot

 - 500mA maximum output current

 - Over Current Protection

 - Thermal shutdown protection

• Built-in 3.3V Power Load Switch for PCIe 3.3Vaux

• Built-in SMBus Hot Swappable 2-Wire Bus Buffer

• Built-in PCIe WAKE# Bidirectional Translator Bus Buffer

• Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer

• Built-in PCIe PWRBRK# Bus Buffer

• LED1 Green On indicates PCIe +12V power ready for PCIE1 Slot

• LED2 Green On indicates PCIe +3.3V power ready for PCIE1 Slot

• LED7 Red On to OFF indicates PERST# Normal (Function intentionally inverted)

Notes :

  • It can't work for PCIe x16 FPGA Root active AIC.
  • It may expand PCIe signals from Host (root complex/dowmstream) to the adapter slot  passive(upstream).
Micro SATA Cables PN # PCIE4-2011-X16
