Drive Adapters and Drive Converters

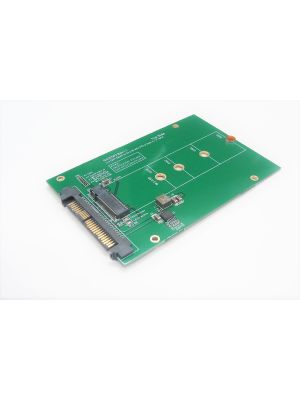

Oculink to M.2 / M.3 NVMe SSD Drive tray SATA 7+15pin to M.2 SATA interface SSD Drive tray

Built-in SFF-8612(Oculink) Female connector

Built-in M.2 M-key Female connector, pin-out defined by PCIe

Built-in M.2 B-key Female connector

Support SSD_Form_Factor_Version1_a

Supports the following form factor M.2 SSD

Type 2242-D2-B-M: 42mm(L) x 22mm(W)

Type 2260-D2-B-M: 60mm(L) x 22mm(W)

Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Type 22110-D2-B-M: 110mm(L) x 22mm(W)

‌PCIe x8 X540-T2 Dual- 10G RJ45 Copper Server NIC Chipset: Intel X540-AT2

Controller : Intel X540

Host Interface : PCIe 2.1

Bandwidth Speed : x8 lane 5GT/s

Port Configuration : Dual

Network Interfaces : RJ45 Copper

Data Rate Supported : 10GbE/1GbE/100Mb

Bracket Height : Low Profile and Full Height

Micro SATA Cables Part #GIG-2241-2

‌PCIe x4 I350-T4 Quad-1G RJ45 Machine Vision NIC Chipset: Intel NHI350AM4

Controller : Intel I350

Host Interface : PCIe 2.1

Bandwidth Speed : x4 lane 5GT/s

Port Configuration : Quad

Network Interfaces : RJ45 Copper

Data Rate Supported : 10/100/1000 Mbps

Bracket Height : Low Profile and Full Height

Micro SATA Cables Part# GIG-2242-4

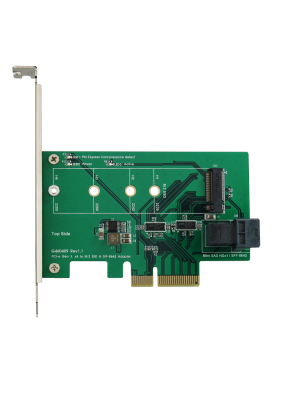

Mini SAS HD SFF-8643 to PCI-e Gen 3 4 Lanes Slot Adapter with Open End Connector Intel IDF 2015 Forum for PCIe REFCLK +/- SFF-9402 for PCIe REFCLK +/-

Perfect for Data Centers, Cloud Computing, Servers, and other mission-critical applications.

Fast data transfer between a Mini SAS HD SFF-8643 connector and a PCI-e Gen 3 4 Lanes Slot.

PCIe GEN 4 U.3 Male to U.3 Female Adapter 16GT/s Adapter

U.3 male to U.3 female connector conversion

Designed for installation in a PCIe x4 slot on a computer motherboard

Supports hot-swapping of U.3 devices without system shutdown
