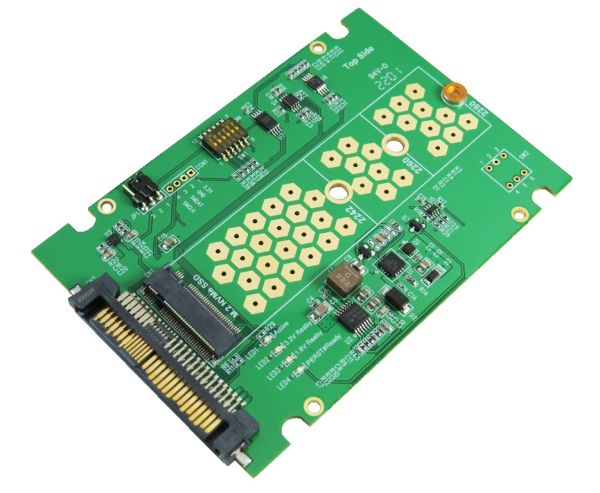

PCIe Gen 4 16GT/s Gen-Z (SFF-8639) to M.2 NVMe Adapter

Availability: In stock
Only 3 left
Part #

Transform your NVMe M.2 SSD into a U.3 (SFF-8639) with PCIe Gen 4 16GT/s adapter. Features incl. SMBus hot plug, voltage level shift & 64K SMBUS EEPROM.

The PCIe Gen 4 16GT/s Gen-Z (SFF-8639) to M.2 NVMe Adapter is a cutting-edge solution for users who need to convert M.2 NVMe storage to the U.3 (SFF-8639) interface. With a built-in SFF-8639 connector and pin-out defined by SFF-9402 Rev1.1, this adapter is designed to provide high performance and reliability for demanding applications.

This adapter features a built-in PWM 12V to 3.3V synchronous buck converter, providing power for M.2 NVMe SSDs. With a maximum output current of 5.5A, this adapter is equipped with output discharge control, over/under voltage protection, thermal shutdown protection, and ESD protection. The built-in 3.3V hot plug power with eFuse protection ensures the safety and stability of your M.2 NVMe SSDs.

The adapter supports the M.2 3.3V & 1.8V supply, M.2 VIO_CFG signal, M.2 PERST# signal, M.2 CLKREQ# signal, M.2 WAKE# signal, and PWRDIS signal. The M.2/1.8V to U.3/3.3V SMBCLK, SMBDATA level shift, isolated repeater, and hot-swap capabilities make this adapter a versatile solution for your storage needs.

With a built-in SMBus EEPROM 64KB, this adapter is compliant with NVM Express 1.3a, PCI Express Base Specification Rev 4.0, SSD_Form_Factor_Version1_a, PCI Express M.2 Specification Version 1.2, PCIe SFF-8639 Module Specification Rev 3.0, and SFF-TA-1001 Rev1.1. It supports the following form factors of M.2 (NGFF) SSDs: Type 2242-D2-B-M, Type 2260-D2-B-M, and Type 2280-D2-B-M.

LED1 (RED) blinking indicates M.2 active status, LED2 (GREEN) indicates 3.3V power ready, and LED3 (GREEN) indicates 1.8V power ready. The programmable current limit, inrush current slew rate, and thermal shutdown protection provide an extra layer of protection for your M.2 NVMe SSDs.

In conclusion, the PCIe Gen 4 16GT/s Gen-Z (SFF-8639) to M.2 NVMe Adapter is a highly advanced, reliable, and versatile solution for converting M.2 NVMe storage to U.3 (SFF-8639) interface. Whether you need to upgrade your storage or expand your system's capabilities, this adapter is a perfect choice.

More Information
Part # GENZ-1666-M2
Bar Code (UPC) 646791004355

PCIe Gen 4 16GT/s Gen-Z(SFF-8639) to M.2 NVMe Adapter. With wake# and CLKREQ# signals, they are from M.2 to U.2.

The adapter supports SMBus Hot plug, repeater buffer, voltage level shift and isolated input and output SMBUS signals with 64K SMBUS


Features :

  • M.2 NVMe to U.3(SFF-8639) convert
  • Built-in SFF-8639, 30u” connector, pin-out defined by SFF-9402 Rev1.1
  • PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
    • 5.5A maximum output current
    •  Output Discharge Control
    •  The output overcurrent protection(OCP)
    •  Uundervoltage lock out protection(UVLO) monitor
    •  Over/Under Voltage Protection
    •  Thermal shutdown protection
    •  ESD HBM (Human Body Mode)/500V
  • Built-in 3.3V Hot Plug Power with eFuse protection for M.2 NVMe SSD
    •  Programmable Current Limit: 6.5A
    •  Programmable Inrush Current Slew Rate
    •  Thermal shutdown protection and fault alert
    •  Back-to-Back (B2B) FET Operation
  • Built-in 3.3V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
  • Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
  • Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
  • Supports M.2 3.3V&1.8V supply
  • Supports M.2 VIO_CFG Signal
  • Supports M.2 PERST# Signal 3.3V and 1.8V Voltage-Level Translator
  • Supports M.2 CLKREQ# Signal 3.3V and 1.8V Switching Translator
  • Supports M.2 WAKE# Signal 3.3V and 1.8V Translator
  • Supports PWRDIS Signal from U.3 pin to M.2 pin
  • Supports M.2 /1.8V to U.3/3.3V SMBCLK, SMBDATA Level Shift
  • Supports M.2 /1.8V to U.3 /3.3V SMBCLK, SMBDATA isolated, repeater
  • Supports M.2 /1.8V to U.3 /3.3V SMBCLK, SMBDATA Hot-Swap
  • Built-in SMBus EEPROM 64KB
  • LED1 RED Blinking indicates M.2 active status
  • LED2 GREEN ON indicates 3.3V power ready
  • LED3 GREEN ON indicates 1.8V power read

Specifications :

  • Compliant with NVM Express 1.3a
  • Support PCI Express Base Specification Rev 4.0
  • Support SSD_Form_Factor_Version1_a
  • Compliant with PCI Express M.2 Specification Version 1.2
  • Compliant with PCIe SFF-8639 Module Specification Rev 3.0
  • Compliant with SFF-TA-1001 Rev1.1

Supports the following form factor M.2(NGFF) SSD

  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Micro SATA Cables PN # GENZ-1666-M
