SATA III – SATA 3 Male to Female 5 wire 8 Inch Extension Cable

Rating:
100 % of 100
$2.75
Availability:
In stock
Only 183 left
Part #
SATA3-EXT8IN

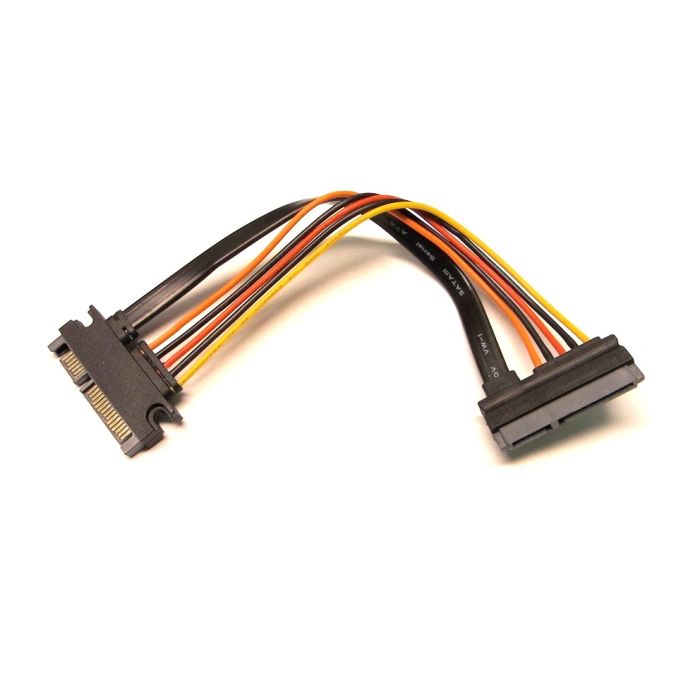

8" 22 pin SATA 3 male to female power with 5 wires and data extension cable. This 22 pin SATA 3 extension assembly contains both 15 pin Power and 7 pin DATA with both Female and Male connections. Item # SATA3-EXT8IN.

This is an 8 Inch 22 pin SATA 3 male to female power with 5 wires and data extension cable.

Description:

  • The unit it wired for 3.3V (orange), 5 Volts (red) and 12 Volts (yellow) along with 2 Black (Ground)
  • The 22 pin SATA 3 extension assembly contains both 15 pin Power and 7 pin DATA with both Female and Male connections.
  • The cable is approx. 8 inches in length.

Micro SATA Cables PN# SATA3-EXT8IN

More Information
Part # SATA3-EXT8IN
Bar Code (UPC) 794504827620
Specifications

‌Overview:

The SATA III – SATA 3 Male to Female 5 Wire Extension Cable is designed to extend the reach of SATA connections within a computer system. This 8-inch cable provides a reliable extension for SATA data connections, allowing for flexible placement of SATA devices, such as hard drives, solid-state drives (SSDs), or optical drives. It features a 5-wire design to support the high-speed data transfer capabilities of SATA III (SATA 3) interfaces.


Technical Specifications:


Type: SATA III Data Extension Cable

Length: 8 inches (20 cm)

Connectors:

Connector A: SATA 7 Pin Male

Connector B: SATA 7 Pin Female

Cable Gauge: 28 AWG (data)

Shielding: Foil shielding to reduce electromagnetic interference (EMI) and ensure signal integrity

Data Transfer Rate: Supports SATA III speeds up to 6 Gbps

Design:


Material: High-quality PVC insulation for flexibility and durability

Connector Build:

SATA 7 Pin Male Connector: Connects to the SATA port on the motherboard or SATA controller

SATA 7 Pin Female Connector: Connects to the SATA data cable of the drive or device

Cable Construction: Designed with 5 wires for high-speed data transmission, featuring reinforced shielding to prevent signal degradation

Insulation: Shielded to protect against electromagnetic interference and ensure reliable data transmission

Performance:


Data Transfer Rate: Supports high-speed data transfer rates up to 6 Gbps, adhering to SATA III standards for efficient communication between devices

Compatibility: Fully compatible with SATA I, SATA II, and SATA III interfaces, ensuring broad compatibility with various devices and motherboards

Signal Integrity: Designed to maintain high signal integrity and minimize data corruption or loss during transfer

Applications:


Internal Connections: Ideal for extending SATA data connections within a computer case, allowing for flexible device placement and improved cable management

Custom Builds: Suitable for custom PC builds where additional length is needed to connect devices in constrained or tight spaces

Upgrades and Repairs: Useful for replacing or extending existing SATA data cables, or for connecting new drives to a motherboard or controller

Key Features:


Extension Cable: Provides 8 inches of additional length to extend SATA data connections, improving flexibility and accessibility

High-Speed Performance: Supports data transfer speeds up to 6 Gbps, ensuring efficient and fast communication between devices

Durable Construction: Made with high-quality materials and shielding to ensure long-lasting performance and reliable connectivity

Flexible Design: 8-inch length provides adequate reach for connecting devices while maintaining a clean and organized setup

Versatile Compatibility: Compatible with SATA I, II, and III standards, making it suitable for a wide range of devices and systems

Usage Notes:


Connection: Connect the SATA 7 Pin Male end to the motherboard or SATA controller and the SATA 7 Pin Female end to the SATA data cable of the device

Handling: Handle the cable and connectors with care to avoid bending or damaging the connectors and internal wiring

Compatibility Check: Verify that your devices and motherboard support SATA III to fully utilize the cable’s data transfer capabilities
