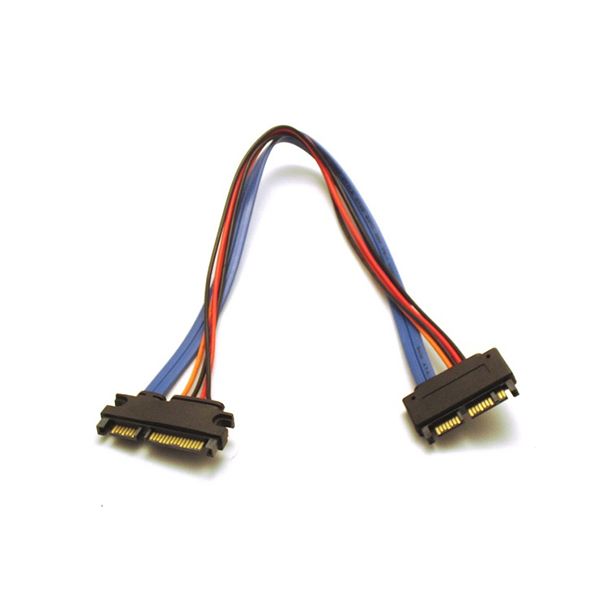

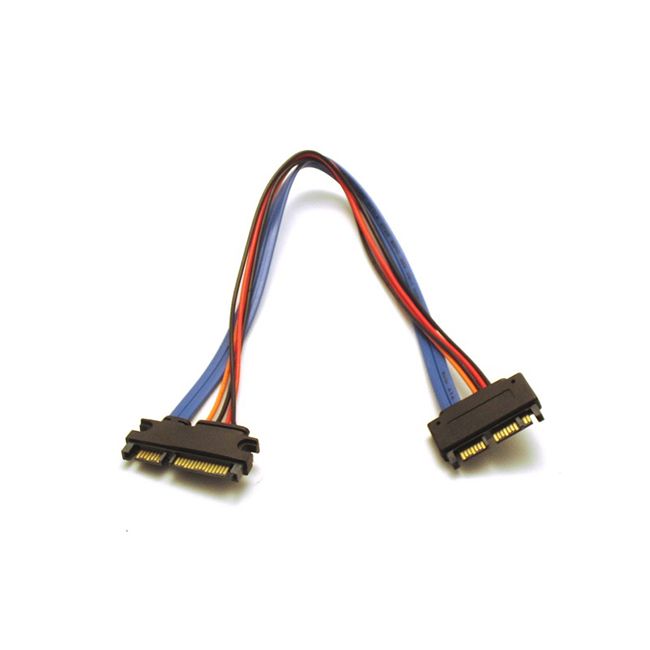

22 Pin SATA Male to Micro SATA 16 Pin Male Cable

‌The 22-Pin SATA Male Connector to Micro SATA 16-Pin Male Connector Assembly Cable is a specialized adapter cable designed to connect standard SATA devices to smaller, compact storage devices that utilize the Micro SATA interface. This cable is commonly used to integrate 1.8-inch Micro SATA solid-state drives (SSDs) or hard disk drives (HDDs) into systems that use standard 2.5-inch or 3.5-inch SATA interfaces.

Key Features:

22-Pin SATA Male Connector: One end of the cable features a standard 22-pin SATA male connector. This connector combines 7 pins for data transmission and 15 pins for power supply. It is commonly used in desktop and laptop motherboards, hard drives, SSDs, and optical drives to facilitate both power and data connectivity over a single connection.

16-Pin Micro SATA Male Connector: The other end of the cable terminates in a Micro SATA 16-pin male connector. Micro SATA is primarily used in 1.8-inch hard drives and SSDs found in ultra-portable laptops, tablets, and some specialized industrial devices. The 16-pin Micro SATA connector includes 7 pins for data transmission and 9 pins for power.

Technical Specifications:

Connectors:

Input: One 22-pin SATA male connector.

Output: One 16-pin Micro SATA male connector.

Cable Length: The cable typically ranges from a few inches to one foot in length, offering enough flexibility for internal connections while maintaining a compact form factor for space-constrained environments.

Functionality:

Power and Data Transmission: This cable facilitates both power and data transmission between a standard SATA port and a Micro SATA device. It allows the user to connect a 1.8-inch Micro SATA drive to a system that only has 22-pin SATA interfaces, ensuring compatibility across different storage formats.

Drive Support: Supports 1.8-inch SSDs or HDDs with a Micro SATA interface, allowing for easy integration into desktop PCs, laptops, or external enclosures.

Power Distribution:

The 22-pin SATA connector includes power lines that deliver 5V and 12V to SATA devices. However, the Micro SATA interface typically only uses the 5V power rail, ensuring proper power distribution to smaller drives that do not require the higher voltage.

Build Quality and Durability:

The cable is generally constructed with durable shielding to protect against electromagnetic interference (EMI) and signal degradation. The connectors are designed for secure fits to prevent accidental disconnection during operation.

Use Cases:

Storage Upgrades: Enables the use of 1.8-inch Micro SATA drives in systems that only have standard 2.5-inch or 3.5-inch SATA ports, ideal for users upgrading to smaller form factor SSDs or repurposing older Micro SATA drives.

Data Transfer: Allows for data migration between different storage formats when upgrading from an older 1.8-inch Micro SATA drive to a newer, larger SATA drive, or vice versa.

Compact Systems: Perfect for embedded systems, small form factor builds, or ultra-portable devices where space constraints necessitate the use of Micro SATA drives.

Compatibility:

The cable is compatible with both SATA I, II, and III standards, supporting data transfer speeds up to 6 Gb/s, depending on the capabilities of the connected devices.

Compliance and Safety:

Typically compliant with industry standards for data and power transmission, ensuring safe and reliable operation in various computing environments. Most cables are RoHS-compliant, ensuring they are free from hazardous materials.

This assembly cable is a versatile tool for users looking to bridge the gap between standard SATA and Micro SATA storage devices, making it a valuable accessory for data recovery, system upgrades, or customized PC builds.
