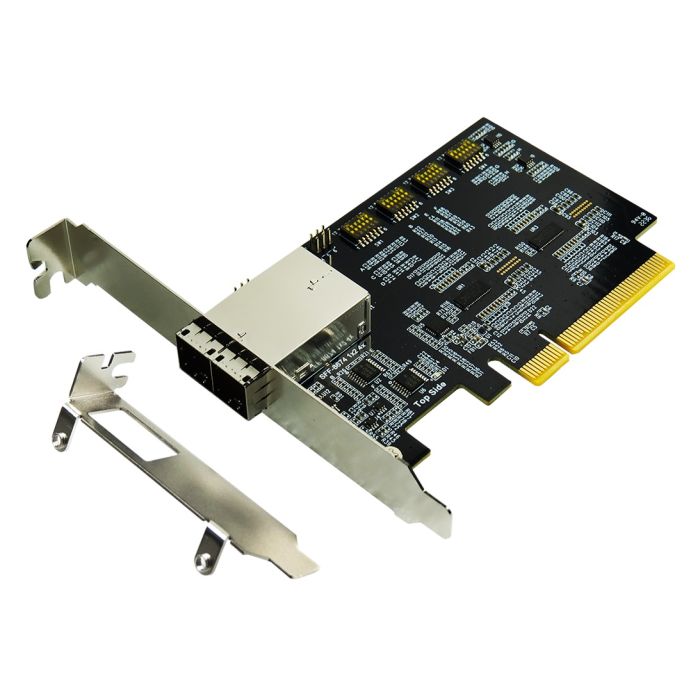

PCIe x8 Gen4 with ReDriver to External Mini SAS HD 1x2, 4X AIC

PCIe x8 Gen4 with ReDriver to External Mini SAS HD 1x2, 4X AIC

Features

• External Mini SAS HD 1x2, 4X(SFF-8674) to PCIe x8 Gen4 convert

• Built-in SFF-8674 1x2, 4X connector

• Input power 3.3V with TVS and Load Switch protection

• PCIe 4.0 8-lane signals input and output with ESD protection

• Built-in ReDriver to extend PCIe 4.0, 16GT/s 8 lanes differential pair signals data link width, and  may provide programmable linear equalization, output swing and flat gain

• The PCIe 8 lanes can be bifurcated into two x4 link width to support different system topologies.

• Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SFF-8674 1x2, 4X to drive longer cable length.

• It may be buffered and fanned out to the SFF-8674 1x2, 4X clock pin.

• Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SFF-8674 1x2, 4X SMBus communication

• Built- in SMBus bidirectional buffer repeater

• Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote

• SFF-8674 1x2, 4X Reset signals

• Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.

• Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.

• Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.

• D1 Green LED on indicates AIC ready

Specifications

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• PCI_Express_External_Cabling_R3.0a_06042020_NCB

• SFF-TA-8614 R3.4.4_CB

Micro SATA Cables PN # MS-2027-8X

‌
