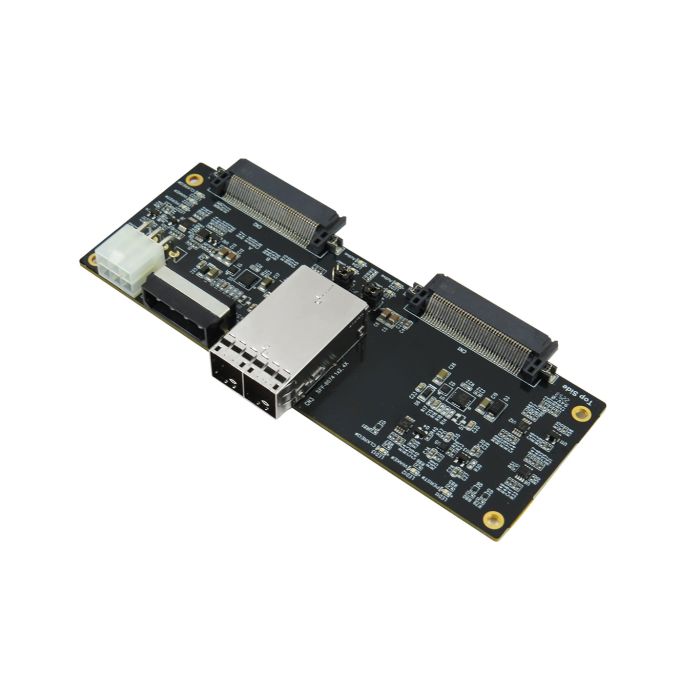

External Mini SAS HD (SFF-8674) 8x to U.2 Dual Port PCIe 4.0
Explore the External miniSAS HD (SFF-8674) 8x to U.2 Dual port PCIe 4.0 and SlimSAS 8i Dual port to PCIe x16 Slot Adapter PCIe 4.0. This adapter enables high-speed data transfer between SlimSAS 8i dual ports and PCIe x16 slots, perfect for high-performance computing.
More Information
| Part # | MS-2028-DU2 |
| Bar Code (UPC) | 611851926397 |
| Specifications | External Mini SAS HD (SFF-8674) 8x to U.2 Dual Port PCIe 4.0 Features : • U.2 dual port to SFF-8674 1x2, 4X(external Mini SAS HD) convert • Built-in SFF-8674 1x2, 4X, 30” connector • Built-in two U.2 SFF-8639, 30u” connector • Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual port o Programmable Current Limit: 6.5A o Programmable Inrush Current Slew Rate o Thermal shutdown protection and fault alert o Back-to-Back (B2B) FET Operation • Built-in two 3.3V Load Switch protection for U.2 dual port 3.3Vaux • Supports U.2 to PCIe CLKREQ#, WAKE# connection with Buffers • Supports U.2 PWRDIS function Implementation • Built-in SMBus Hot Swappable 2-Wire Bus Buffer • LED1, LED3 Green LED on indicates U.2 NVMe SSD power ready • LED2, LED4 Red LED Blinking indicates U.2 active status • LED11, LED21 Red OFF indicates PERST# Normal (Function intentionally inverted) • LED12, LED22 Red OFF indicates WAKE# Normal (Function intentionally inverted) • LED13, LED23 Red OFF indicates CLKREQ# Normal (Function intentionally inverted) Specifications : • Compliant with NVM Express 1.4 • Support PCI Express Base Specification Rev 4.0 • Support SSD_Form_Factor_Version1_a • Compliant with PCIe_SFF-8639_R3.0_V1.0 • Compliant with SFF-TA-1001 Rev1.1 • Compliant with SFF-9402 Rev1.1 Micro SATA Cables PN # MS-2028-DU2 |
