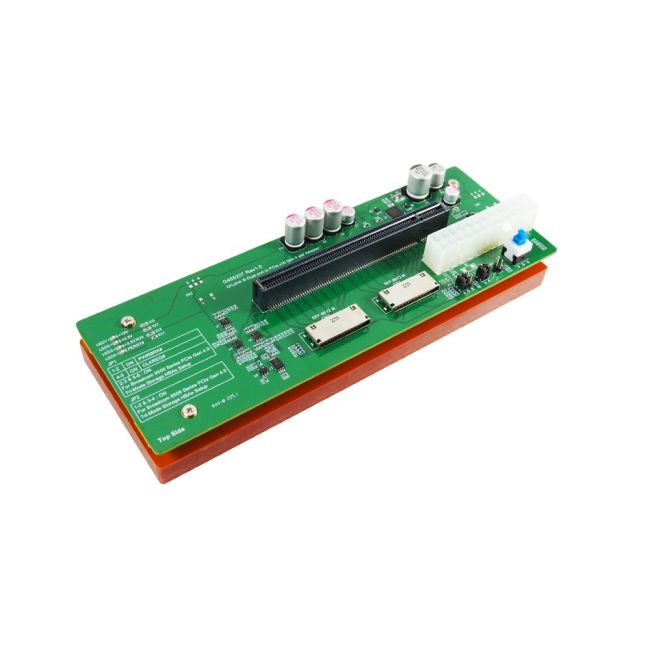

‌Oculink 8i Dual Port to PCIe x16 Gen4 Slot Adapter

$98.75
Availability: In stock
Only 5 left
Part #
OCU-2069-16X

Oculink 8i Dual Port to PCIe x16 Slot Adapter PCIe 4.0

‌Oculink 8i Dual Port to PCIe x16 Slot Adapter PCIe 4.0

The ‌Oculink 8i Dual Port to PCIe x16 Gen4 Slot Adapter is a revolutionary piece of hardware that offers unmatched versatility and convenience. With two ports that can accommodate high-speed PCIe x16 Gen4 devices, this adapter is designed to provide users with increased connectivity options and superior performance. Whether you need to connect a graphics card, an SSD, or any other PCIe device, this adapter ensures lightning-fast data transfer rates and uninterrupted power supply. The Oculink 8i Dual Port to PCIe x16 Gen4 Slot Adapter is truly a game-changer in the world of connectivity solutions.

What truly sets the ‌Oculink 8i Dual Port to PCIe x16 Gen4 Slot Adapter apart is its incredible durability and reliability. Built to withstand the test of time, this adapter is made from high-quality materials that ensure maximum durability and longevity. Say goodbye to frequent replacements or worries about compatibility issues. With the ‌Oculink 8i Dual Port to PCIe x16 Gen4 Slot Adapter, you can rest assured knowing that your devices will always have a stable and secure connection. Its reliability and robustness make it an indispensable tool for anyone who relies on high-speed data transfers for work or play.


Micro SATA Cables Part# OCU-2069-16X

More Information
Part # OCU-2069-16X
Bar Code (UPC) 611851926694
Specifications

‌Oculink 8i Dual Port to PCIe x16 Slot Adapter PCIe 4.0

F‌eatures :

  • OCulink 8i dual port to PCIe x16 signals extension
  • Built-in ATX 24-pin Power supply connector
    •  +5VSB Input with Bidirectional TVS(TRANSIENT VOLTAGE SUPPRESSOR)
    •  Manual Switch ON or Jumper Short for ATX 24-pin Power supply ON
  • Built-in OCulink 8i(SFF-8612) with 30u”(0.76um) min Au mating area plating x2 pcs
  • Built-in PCIe 4.0 x16 Slot with 15 u”(0.38um) min Au mating area plating
  • Built-in MAX5954A PCI Express Power Hot-Plug Controller
    • Hot Swaps +12V, +3.3V, and 3.3V Auxiliary Power Rail
    • Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
    • Drives two external n-channel MOSFETs to control the +12V and +3.3V main outputs
  • Built-in Conductive Polymer Aluminum Solid Capacitors for 75W PCIe x16 Slot Power Supply Rail Requirements as follows:
    •  +12V Voltage Supply Current Capacitive Load : 5.5 A Current, 1470 µF
    •  +3.3 Voltage Supply Current Capacitive Load : 3 A Current, 3300 µF
    •  3.3aux Voltage Supply Current Capacitive Load : 375 mA Current, 330 µF
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer
  • Built-in PCIe PERST# Bus Buffer and manul switch
  • Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
  • Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
  • Built-in PCIe PWRBRK# Bus Buffer
  • LED1 Green On indicates +12V power ready for PCIe x16 Slot
  • LED2 Green On indicates +3.3V power ready for PCIe x16 Slot
  • LED3 Green On indicates 3.3Vaux power ready for PCIe x16 Slot
  • LED4 Green On to OFF indicates PERST# Normal (Function intentionally inverted)
Specifications :
  • Support PCI Express Base Specification Rev 4.0
  • Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
  • Compliant with PCI_Express_OCuLink_1.0a
  • Compliant with SFF-9402 Rev1.1
Supports the following Broadcom Series Products :
  • Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA Tri-Mode Storage Adapters:
MegaRAID 9670W-16i
MegaRAID 9670-24i
MegaRAID 9660-16i
eHBA 9620-16i
eHBA 9600-24i
eHBA 9600-16i
eHBA 9600-8e8i
  • Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage :
MegaRAID 9560-16i
MegaRAID 9560-8i
MegaRAID 9580-8i8e
HBA 9500-16i
HBA 9500-8i
P411W-32P

Micro SATA Cables PN #OCU-2069-16X
