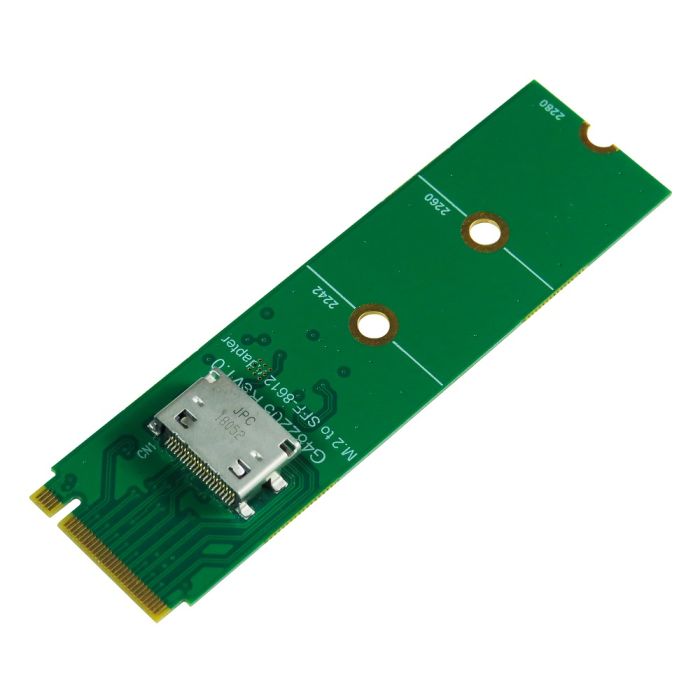

M.2 Golden Finger to OCulink Adapter

$38.75
Availability: In stock
Only 14 left
Part #
M2-1457-OCU

M.2 M-Key to Oculink Adapter, 4 layer PCB w/ build-in SFF-8612 connector. Connect M.2 SSD to PCIe 4 lanes & supports SFF-9402 & Intel IDF 2015 CLKpin. Compatible w/ M.2 SSD form factors & SFF-8611 to SFF-8654 cables.

Upgrade your data transfer capabilities with the M.2 M-Key to Oculink Adapter. This high-performance solution connects M.2 NVMe SSDs to Oculink (SFF-8612) interfaces, allowing for fast and reliable data transfer speeds.

Designed with a 4-layer PCB and featuring 4 lanes of PCI-e, this adapter also has a built-in Oculink connector for a secure and stable connection. The connected PCIe 4 Lane signals from the M.2 golden finger to the Oculink interface enable seamless data transfer.

Compatible with a wide range of devices, this adapter supports SFF-9402 CLKpin and Intel IDF 2015 CLKpin. It also adheres to the PCI Express Card Electromechanical Spec. Rev. 2.0, PCI Express M.2 Spec. Rev. 0.7, Ver. 1.0, and PCIe Oculink Rev 1.0 SFF-8612 Rev 0.3 specifications.

This adapter supports a variety of series cables including SFF-8611 to SFF-8639 Cable, SFF-8611 to SFF-8611 Cable, SFF-8611 to SFF-8643 Cable, and SFF-8611 to SFF-8654 Cable. It is also compatible with a range of M.2 SSD form factors, including Type 2280-D2-B-M (80mm(L) x 22mm(W)), Type 2260-D2-B-M (60mm(L) x 22mm(W)), and Type 2242-D2-B-M (42mm(L) x 22mm(W)).

This adapter can be used with our Micro SATA Cables PN # M2-1457-OCU, and can be paired with our SFF-8654 to PCIe 4 Lanes slot Adapter and OCulink SFF-8611 to Slimline SAS SFF-8654 Cable for even more versatility.

More Information
Part # M2-1457-OCU
Bar Code (UPC) 646791002849
Specifications

M.2 Golden Finger to OCulink Adapter

Features :

  • 4 lanes of PCI-e designated
  • 4 Layer PCB designed
  • Build in Oculink (SFF-8612) connector
  • Connected PCIe 4 Lane signals, from M.2 golden finger to Oculink (SFF-8612)
  • Supports SFF-9402 CLKpin
  • Supports Intel IDF 2015 CLKpin

Specifications :

  • PCI Express Card Electromechanical Spec. Rev. 2.0
  • PCI Express M.2 Spec. Rev. 0.7, Ver. 1.0
  • PCIe Oculink Rev 1.0 SFF-8612 Rev 0.3

Supports series cables :

  • SFF-8611 to SFF-8639 Cable
  • SFF-8611 to SFF-8611 Cable
  • SFF-8611 to SFF-8643 Cable

SFF-8611 to SFF-8654 Cable Support M.2 SSD Form Factor:

  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Micro SATA Cables PN #M2-1457-OCU

‌M.2 Golden Finger to Oculink Adapter

Unit can be used with our Micro SATA Cables PN# SFF-1386-4LN

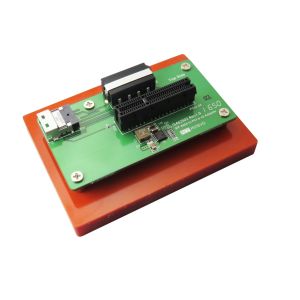

»SFF-8654 to PCIe 4 Lanes slot Adapter

Unit can be used with our cable Micro SATA Cables PN # RML42-0503

» OCulink SFF-8611 to Slimline SAS SFF-8654 Cable.
