USB 3.1 Micro B and SATA III to mSATA and M.2 SSD Adapter
USB 3.1 Micro B and SATA III to mSATA and M.2 SSD Adapter

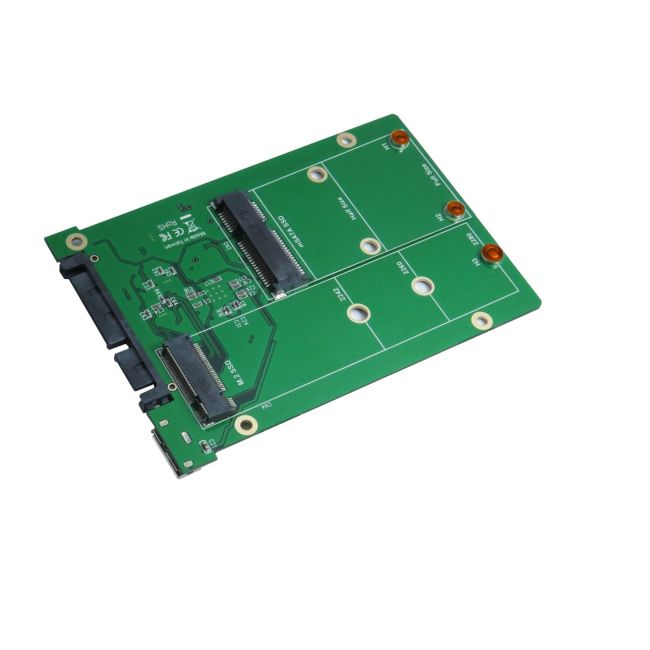

The USB 3.1 Micro B and SATA III to mSATA and M.2 SSD adapter allows you to connect mSATA or M.2 SSD drives to a host computer via USB or SATA connections.
USB 3.1 Micro B and SATA III to mSATA and M.2 SSD Adapter
Features :
Build in ASM1351 USB3.1 / 1.0 Gbps high performance processor
M.2 SSD (SATA interface) to USB 3.1 /10Gbps & SATA Converter
mSATA SSD to USB 3.1 10Gbps & SATA converter
Build in micro B Female connector
Built in mini PCI-e Female connnector
Built in M.2 B-key Female connector
PWM synchronous buck converter
- 3A maximum output current
- Short Circuit protection
- In-Rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
D1 Green LED on indicates SSD Power ready
D3 Red LED Blinking indicates SSD active status
Specifications :
Compliant with USB 3.1 Specification Revision 1.0
Supports USAP and Mass Storage Class Overview REV 1.1
Supports SATA Revision 3.2
Compliant with PCI Express M.2 Specification Version 1.0
PCI Express Mini Card Electromechanical Specification 2.0
mSATA SSD Form Factor :
Full size support: Form factor: 50.95 mm (L) x 30mm (W)
Half size support: Form factor: 26.8 mm (L) x 30 mm (W)
M.2 SSD Form Factor Support :
Type 2242-D2-B-M : 42mm(L) X 22mm(W)
Type 2260-D2-B-M : 60mm(L) X 22mm(W)
Type 2280-D2-B-M : 80mm(L) X 22mm(W)
Notice 1 : internal M.2 SSD or mSATA SSD, only one can work, M.2 SSD would be priority.
Notice 2 : external USB3.1 micro B or SATA, only one can work, SATA would be priority
Micro SATA Cables PN # USB3.1-1382-ADP
| Part # | USB3.1-1382-ADP |
|---|---|
| Bar Code (UPC) | 646791002245 |
| Specifications | USB 3.1 Micro B and SATA III to mSATA and M.2 SSD Adapter Features : Build in ASM1351 USB3.1 / 1.0 Gbps high performance processor M.2 SSD (SATA interface) to USB 3.1 /10Gbps & SATA Converter mSATA SSD to USB 3.1 10Gbps & SATA converter Build in micro B Female connector Built in mini PCI-e Female connnector Built in M.2 B-key Female connector PWM synchronous buck converter
D1 Green LED on indicates SSD Power ready D3 Red LED Blinking indicates SSD active status Specifications : Compliant with USB 3.1 Specification Revision 1.0 Supports USAP and Mass Storage Class Overview REV 1.1 Supports SATA Revision 3.2 Compliant with PCI Express M.2 Specification Version 1.0 PCI Express Mini Card Electromechanical Specification 2.0 mSATA SSD Form Factor : Full size support: Form factor: 50.95 mm (L) x 30mm (W) Half size support: Form factor: 26.8 mm (L) x 30 mm (W) M.2 SSD Form Factor Support : Type 2242-D2-B-M : 42mm(L) X 22mm(W) Type 2260-D2-B-M : 60mm(L) X 22mm(W) Type 2280-D2-B-M : 80mm(L) X 22mm(W) Notice 1 : internal M.2 SSD or mSATA SSD, only one can work, M.2 SSD would be priority. Notice 2 : external USB3.1 micro B or SATA, only one can work, SATA would be priority Micro SATA Cables PN # USB3.1-1382-ADP |
