SATA III to M.2 SSD Adapter Device Sleep Mode (DEVSLP) with Frame Housing
SATA III to M.2 SSD Adapter Device Sleep Mode (DEVSLP) with 2.5 Inch Frame Housing supports SATA Reversion
SATA III to M.2 SSD Adapter Device Sleep Mode (DEVSLP) with 2.5 Inch Frame Housing
Description:

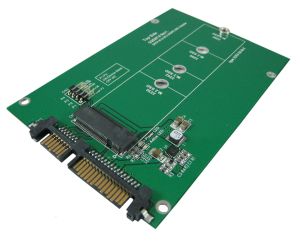

The adapter is a SATA III to M.2 (NGFF) Storage adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux and Unix.
The adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.
Specifications :
- 2.5 Inch 9.5 MM(H) SSD Form Factor
- M.2 (NGFF) to SATA III Module
- DEVSLP Assignment on Standard SATA connector
- - SATA Power Pin 3 definition for Device Sleep Pin
- DEVSLP Assignment on M.2 SSD connector
- - M.2 SSD pin 38 Device Sleep
- Connected SATA P3 to M.2 pin 38
- Support M.2 SSD P56 MFG DATA pin
- Support M.2 SSD P58 MFG Clock pin
- Green LED indicates the M.2 SSD's power status
- Red LED indicates the M.2 SSD's active status
Features :
- Support SATA Reversion 3.2
- Compliant with PCI Express M.2 Spec. Version 1.0
- PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
Micro SATA Cables PN# M2-DEVSLP-HSG
| Part # | M2-DEVSLP-HSG |
|---|---|
| Bar Code (UPC) | 643131531724 |
| Specifications | SATA III to M.2 SSD Adapter Device Sleep Mode (DEVSLP) with 2.5 Inch Frame Housing Description:The adapter is a SATA III to M.2 (NGFF) Storage adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux and Unix. The adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices. Specifications :
Features :
Micro SATA Cables PN# M2-DEVSLP-HSG |
