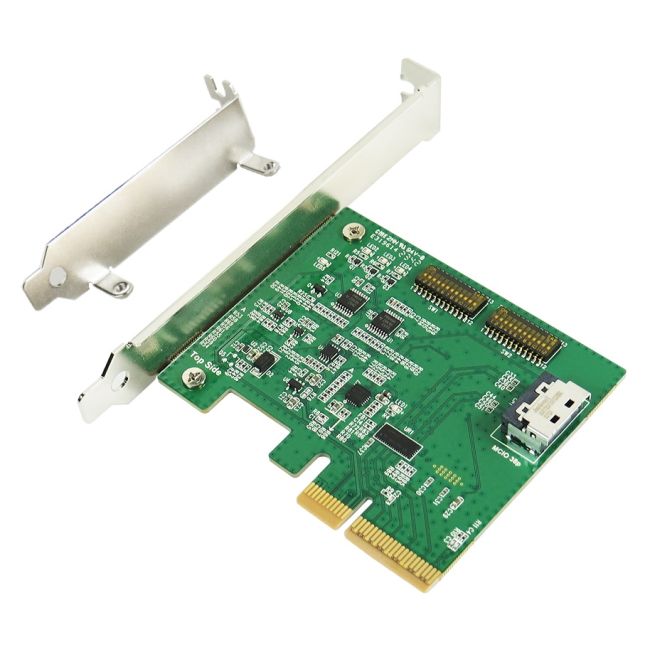

PCIe x4 with Redriver to MCIO 38P PCIe GEN 5

$158.75
Availability: In stock
Only 5 left
Part #
MCIO-2127-X4

PCIe x4 Redriver to MCIO 38P PCIe Gen 5 Adapter - High-Speed Data Transfer and Signal Integrity Enhancement - Ideal for PCIe x4 to MCIO 38P Connectivity

Upgrade your data connectivity with the PCIe x4 Redriver to MCIO 38P PCIe Gen 5 adapter. This innovative adapter facilitates seamless communication between PCIe x4 with Redriver interfaces and MCIO 38P PCIe Gen 5 interfaces, ensuring efficient data transfer and optimal performance for your system. Key Features 1. Efficient Data Transfer: Experience fast and reliable data transfer between PCIe x4 with Redriver interfaces and MCIO 38P PCIe Gen 5 interfaces. 2. Advanced Redriver Technology: The PCIe x4 Redriver ensures signal integrity and extends the reach of high-speed PCIe signals, minimizing data transmission errors. 3. High-Speed Connectivity: Benefit from PCIe Gen 5 speeds, maximizing throughput and reducing latency for demanding applications. 4. Versatile Compatibility: Compatible with PCIe x4 with Redriver interfaces and MCIO 38P PCIe Gen 5 interfaces, providing flexible connectivity options for various devices and configurations. 5. Durable Construction: Built with high-quality materials, this adapter is designed for durability and reliability, ensuring long-term usage in challenging environments. Technical Specifications Interface: PCIe x4 Redriver to MCIO 38P PCIe Gen 5 Compatibility: PCIe x4 with Redriver interfaces, MCIO 38P PCIe Gen 5 interfaces Connector Type: PCIe x4 to MCIO 38P Construction: High-quality materials for durability and reliability Enhance your data connectivity with the PCIe x4 Redriver to MCIO 38P PCIe Gen 5 adapter.

More Information
Part # MCIO-2127-X4
Bar Code (UPC) 611851927011
Specifications

Features :

  • Supports Server BMC management
  • MCIO 38P to PCI Express x4 Gen 5 convert
  • Built- in SFF-TA-1016/MCIO 38P, 30u”connector
  • Built-in ReDriver to extend PCIe 5.0, 32GT/s 4 lanes differential pair signals data link width, and may provides equalization up to 24 dB at 16 GHz
  • Built- in PCIe 100MHz Clock buffer to drive longer PCB trace lengths and longer cable, Address: 0x6C(7 bits)
  • Built- in SMBus Switch, Address: 0x71(7 bits)
  • Built- in SMBus I/O Expander, Address: 0x20(7 bits) for MCIO 38P PWRDIS control
  • Supports PCIe PERST# for OOB(out of band) management to remote MCIO 38P Reset
  • Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer PCB trace lengths and longer cable
  • Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer PCB trace lengths and longer cable
  • Input 3.3V with bidirectional TVS protection
  • Input 3.3V provides 3A current Load switch and reverse current protection
  • LED1 Green LED on indicates AIC ready
  • LED2 Green LED on to off indicates PCIe WAKE# signals
  • LED3 Green LED on to off indicates PCIe CLKREQ# signals
  • LED4 Green LED on to off indicates PCIe PERST# signals ‌

Specifications :

  • PCIe Base Specification Revision 5.0 Version 1.0
  • PCIe_CEM_R5_V1.0_06092021_NCB
  • Compliant with SFF-TA-1016 Specification Version 1.1
