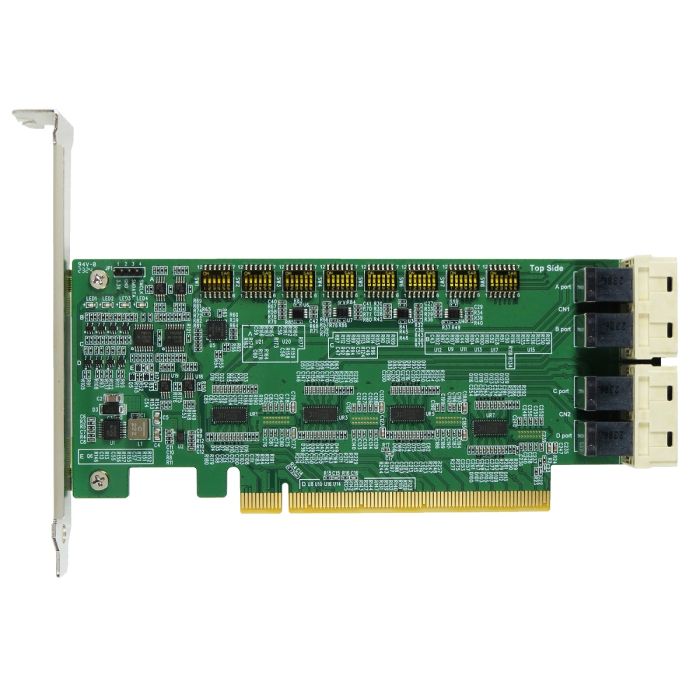

PCIe x16 Gen 4 with ReDriver to MiniSAS HD (SFF-8673) x8 Dual Port Adapter PCIe 4.0

$178.75
Availability:
In stock
Only 1 left
Part #
MS-2076-16X

PCIe x16 Gen 4 Adapter with ReDriver Technology for High-Speed Data Transfer - Dual Port MiniSAS HD (SFF-8673) x8 Adapter

Upgrade your data connectivity with the PCIe x16 Gen 4 Adapter equipped with ReDriver technology, designed for high-speed communication to MiniSAS HD (SFF-8673) x8 Dual Port interfaces. Key Features 1. Efficient Data Transfer: Experience fast and reliable data transfer with the PCIe x16 Gen 4 Adapter and ReDriver technology. 2. Advanced ReDriver Technology: The ReDriver feature enhances signal integrity and extends the reach of high-speed PCIe signals, minimizing data transmission errors and ensuring reliable connectivity. 3. MiniSAS HD Connectivity: Benefit from the MiniSAS HD (SFF-8673) x8 Dual Port interfaces for versatile connectivity options. 4. Dual Port Design: This Dual Port Adapter offers flexibility and convenience. 5. PCIe 4.0 Compatibility: Designed for PCIe Gen 4.0, this adapter ensures compatibility with the latest generation of PCIe technology. 6. Durable Construction: Built with high-quality materials. Technical Specifications Interface: PCIe x16 Gen 4 with ReDriver to MiniSAS HD (SFF-8673) x8 Dual Port Compatibility: PCIe x16 Gen 4 interfaces, MiniSAS HD (SFF-8673) x8 Dual Port interfaces Connector Type: PCIe x16 Gen 4 to MiniSAS HD (SFF-8673) x8 Dual Port PCIe Version: PCIe 4.0 Dual Port Design: Dual Port Adapter for versatile connectivity Construction: High-quality materials for durability and reliability Enhance your data connectivity with the PCIe x16 Gen 4 Adapter with ReDriver to MiniSAS HD (SFF-8673) x8 Dual Port.

More Information
Part # MS-2076-16X
Bar Code (UPC) 611851926786
Specifications

Features :

• Internal Mini SAS HD 1x2, 4X(SFF-8673) dual port to PCIe x16 Gen4 convert

• Built-in SFF-8673 1x2, 4X dual port connector with 30u”(0.38um) min Au mating area plating

• Input +12V, +3.3V, 3.3VAUX with TVS protection

• Built-in +12V to 3.3V_IN, 5.5A current PWM Power controller

• Built-in 3.3V_IN Power Load Switch for ReDriver controller Power Protection.

• PCIe 4.0 16-lane signals input and output with ESD protection

• Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals and may provides programmable linear equalization, output swing and flat gain

• The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies

• Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SFF-8673 dual port to drive longer cable length. It may be buffered and fanned out to the SFF-8673 dual port clock pin.

• Built-in SMBus Switch(Address: 0x70) with Reset Function for SFF-8673 dual port SMBus communication

• Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote SFF-8673 dual port Reset signals.

• Supports PCIe PERST# management to control SFF-8673 dual port Reset signals.

• Built-in PERST# Bus Buffer to be used longer cable length.

• Built-in WAKE# Auto-Bidirectional Bus Buffer to be used longer cable length.

• Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used longer cable length.

• LED1 Green LED on indicates AIC ready

• LED2 Red OFF indicates WAKE# Normal (Function intentionally inverted)

• LED3 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)

• LED4 Red OFF indicates PERST# Normal (Function intentionally inverted)

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with Support SFF-9402 Rev1.1

• Compliant with PCI_Express_OCuLink_1.0a

Specifications :

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with Support SFF-9402 Rev1.1

• Compliant with Support SFF-8613Rev3.5


Applications :

• Rack server

• Micro server and Tower server

• High performance computing

• Hardware accelerator

• Storage Controller HBA(Host Bus Adapter)

• Desktop PC/motherboard
