Micro SATA 1.8 inch all Power and SATA Data Cable
Micro SATA 1.8 inch all Power and SATA Data Cable
Micro SATA 1.8 inch all Power and SATA Data Cable
Description :

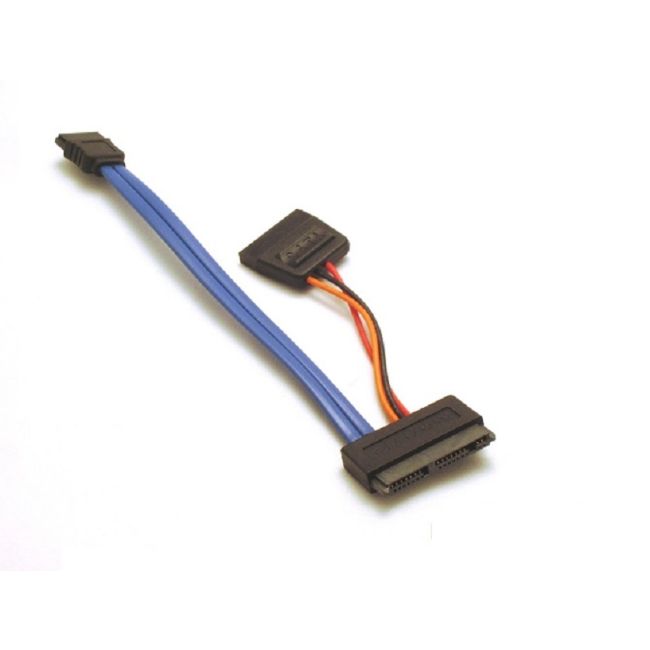

The Cable assembly is for a Micro SATA 1.8-inch form factor Solid State Drive (SSD) or Hard Disk Drives (HDD). SATA Cable is 6 inches length. The Power cable is 4 inches in length.
The Micro SATA connector is a 16 positions socket, including 7 positions with 1.27 mm pitch for signal and 7+2 positions with 1.27 mm pitch for power requirements. The 7 pin SATA receptacle connector supports system data applications. The 15 pin SATA Female connector for power can be used for both 5V or 3.3V drives. The 15 pin Male plug the cable plug connects to needs to support both 5V and 3.3V .
The power supply must provide a3.3V source of power for this cable to operate your 3.3V Micro SATA drive.
Item #MS16P15P7S-6-4IN
| Part # | MS16P15P7S-6-4IN |
|---|---|
| Bar Code (UPC) | 643131530314 |
| Specifications | Overview The Micro SATA 1.8 inch All Power and SATA Data Cable is specifically designed for connecting 1.8-inch Micro SATA drives to standard SATA interfaces. This cable combines power and data transmission in a single, streamlined connector, making it an ideal solution for small form factor storage devices in ultrabooks, netbooks, and other compact computing systems. Technical Specifications Connector Type: Connector A: Micro SATA 16-pin female Connector B: Standard SATA 22-pin female Cable Length: Varies (typically ranges from 10 inches to 18 inches, depending on manufacturer specifications) Data Transfer Rate: Supports SATA I (1.5 Gbps), SATA II (3.0 Gbps), and SATA III (6.0 Gbps) standards. Power Transmission: Provides power to the Micro SATA drive via the integrated 3.3V and 5V power lines from the standard SATA connector. Cable Construction: Conductors: High-quality copper conductors for optimal signal integrity and power delivery. Insulation: Durable PVC insulation for flexibility and protection against electrical interference. Shielding: Adequate shielding to reduce electromagnetic interference (EMI) and crosstalk. Compatibility: Compatible with 1.8-inch Micro SATA SSDs and HDDs, as well as standard SATA ports on motherboards and SATA controllers. Operating Temperature Range: -20°C to 80°C (-4°F to 176°F), suitable for use in varied environmental conditions. Compliance: RoHS (Restriction of Hazardous Substances) compliant, ensuring the cable is free from hazardous materials. Applications Compact Storage Solutions: Ideal for connecting 1.8-inch Micro SATA SSDs or HDDs to standard SATA interfaces in ultrabooks, netbooks, and other compact devices. System Upgrades: Useful for upgrading storage in systems that utilize 1.8-inch Micro SATA drives. Data Transfer: Facilitates data transfer between Micro SATA drives and standard SATA-equipped systems. Embedded Systems: Suitable for use in embedded systems where space constraints require compact storage solutions. Key Features Combined Power and Data Connector: Integrates power and data lines into a single connection, simplifying installation and reducing cable clutter. High-Speed Data Transfer: Supports the latest SATA III standard for fast and reliable data transfer rates up to 6.0 Gbps. Robust Design: Constructed with high-quality materials to ensure longevity and consistent performance. Versatile Compatibility: Works seamlessly with a wide range of 1.8-inch Micro SATA drives and standard SATA interfaces. |
