Gen Z and U.3 to M.2 SSD Adapter

Availability: Out of stock
Part #

‌‌Gen Z and U.3 to M.2 SSD Adapter

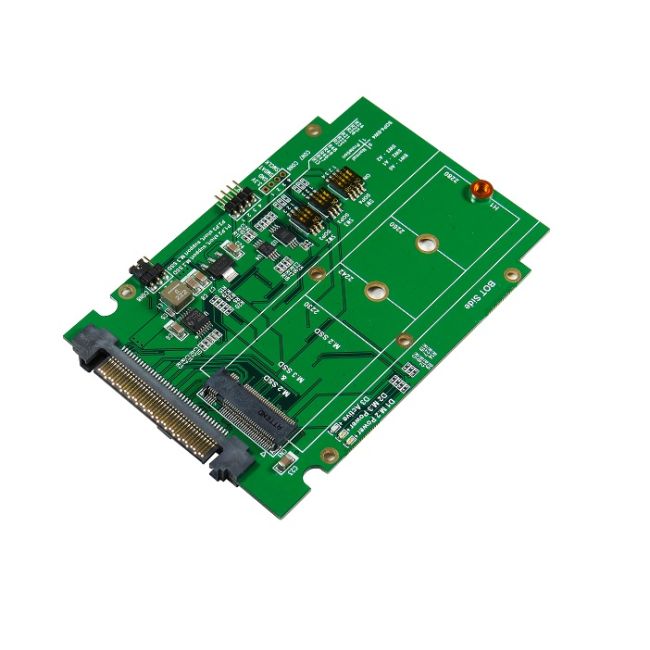

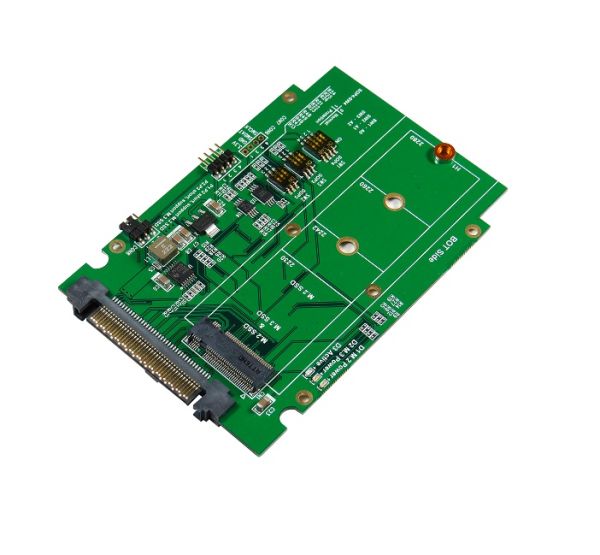

The Gen Z and U.3 to M.2 SSD Adapter convert is a small circuit board that can be plugged into any M.2 slot and provides a connection to a U.2 cable for attaching an NVMe drive. The circuit board comes with a connector for attaching an 80mm cable with SFF-8639 connectors on both ends, which can be easily connected to any compatible PCIe slot or backplane. The converter board is based on a synchronous buck power supply design, which enables it to provide the necessary power for most PCIe M.2 SSDs. It supports 4A maximum output current and has short circuit protection, in-rush current suppression and thermal shutdown protection functions built in. The adapter is made of high-quality materials, durable with excellent heat dissipation performance, so it can work stably during long time running and with low noise level as well.

Micro SATA Cables PN#GENZ-U3-1459

More Information
Part # GENZ-U3-1459
Bar Code (UPC) 646791002740

‌‌Gen Z and U.3 to M.2 SSD Adapter

  • M.2 NVMe to U.2(SFF-8639) convert
  • Build in SFF-8639 connector, pin-out defined by PCIe
  • PWM synchronous buck converter Power for M.2 SSD
    • 4A maximum output current
    • Short circuit protection
    • In-rush current suppression
    • Thermal shutdown protection
    • ESD HBM (Human Body Mode)/2KV
  • Supports CLKREQ#, WAKE#
  • Supports M.2 /1.8V to 3.3V SMB_CLK, SMB_DATA Level Shift
  • Supports M.2 /1.8V to 3.3V SMB_CLK, SMB_DATA isolated
  • Builde in SMBUS EEPROM 256KB
  • D1 Green LED on indicates M.2 NVMe SSD power ready
  • D3 RED LED Blinking indicates M.2 active status


  • Compliant with NVM Express 1.2
  • Support PCI Express Base Specification Rev 3.0
  • Support SSD_Form_Factor_Version1_a
  • Compliant with PCI Express M.2 Specification Version 1.0
  • Compliant with SFF-8639 Specification Rev 2.1
  • Compliant with SFF-TA-1001 Rev1.1

Supports the following form factor M.2(NGFF) SSD:

  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)


POS 1 POS 2 POS 3

PRSNT# IfDet2# IfDet#

P10 pin E6 pin P4 pin Device Type Installed

Gnd Open Gnd SAS / SATA

Open Open Gnd Quad PCIe

Open Open Open Bay Empty

Open Gnd Gnd SFF-TA-1001 PCIe

Open Gnd Open Gen-Z

NOTE : SSD shown is not included. Micro SATA CAbles PN # GENZ-U3-1459
