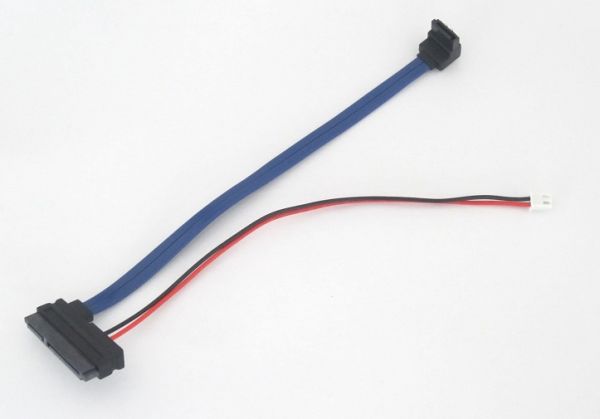

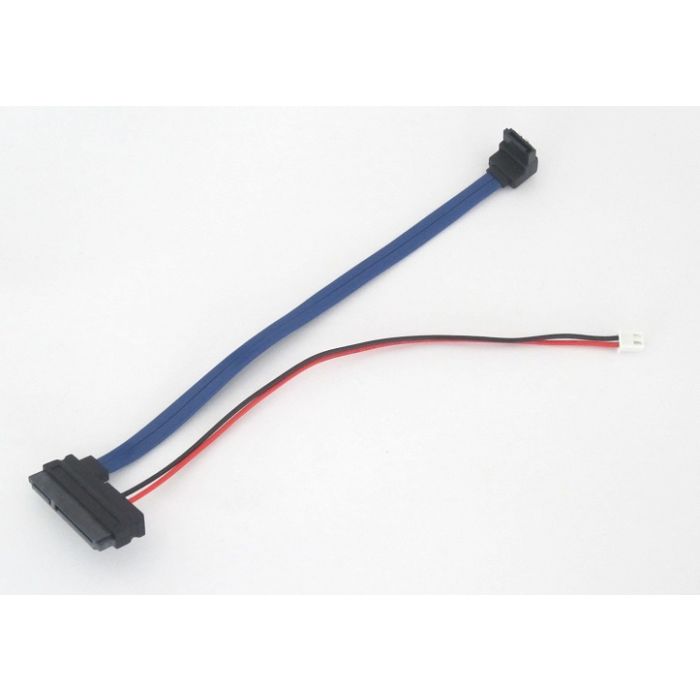

22 Pin SATA Female Cable with 2 Pin Power and Right Angle 7 Pin SATA
This type of cable is also used in small computer units such as Cubieboard and pcDuino3 which also use the 2 Pin XHP-2 power connector.
22 Pin SATA Female Cable with 2 Pin Power and Right Angle 7 Pin SATA
Description:
This type of cable is also used in small computer units such as Cubieboard and pcDuino3 which also use the 2 Pin XHP-2 power connector.
Specifications:
- Fits 22 Pin SATA type HDD’s or SSD’s devices.
- Operates on 5 Volt Power
- Cable length : 8 Inches
Micro SATA Cables PN # P22F-2P5V-7PSL
| Part # | P22F-2P5V-7PSL |
|---|---|
| Bar Code (UPC) | 643131529448 |
| Specifications | The 22-pin SATA female cable you're describing seems to be a specialized connector used in compact computing devices like the Cubieboard and pcDuino3. Here's a breakdown of the components: 22-Pin SATA Female Connector: This is likely used for connecting storage devices (like SSDs or HDDs) that require a SATA interface. The 22 pins include data and power connections, with 7 pins for data and 15 for power. 2-Pin Power Connector: This might be an additional power connector designed to provide extra power to the SATA device, ensuring it operates correctly, especially in small or low-power devices. Right Angle 7-Pin SATA Connector: The right-angle design helps in fitting the connector into tight spaces by allowing the cable to run parallel to the board, which is useful in compact setups. This combination is tailored for compact or embedded systems where space is limited, offering a flexible and compact solution for connecting SATA drives and providing necessary power. |
