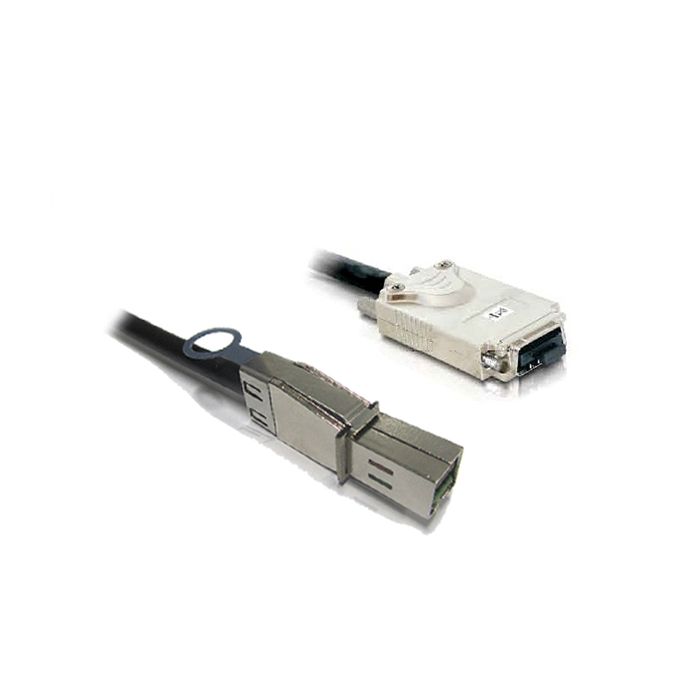

LSZH External Mini-SAS HD SFF-8644 to Mini-SAS SFF-8470 Cable 3M

‌LSZH version (SFF-8644 to SFF-8470) in 3 Meter length

Description:

External Mini-SAS HD SFF-8644 to Mini-SAS SFF-8470 Cable 3 Meter LSZH Version

External Mini-SAS HD to SAS cables maximize speed and port density for adapter cards, servers, and switches. This Mini SAS HD cable is guaranteed to perform at data-rates of 6.0 Gbps per lane and features a SFF-8644 pull to release connector on one end, and a SFF-8470 jack-screw connector on the opposite end. The pull tab connector is compatible with all mini-SAS HD (SFF-8644) ports.

Specifications:

Length = 3M

Wire Size (AWG) = 30

Connector A = Mini SAS HD (SFF-8644)

Connector B = SAS (SFF-8470)

Impedance = 100 Ohms

Data Rate = 6.00 Gb/s(Future SAS 3.0 12.00 Gb/s)

Applications = Fibre Channel, Infiniband, and SAS 2.1 (Serial Attached SCSI) compliant

RoHS Compliant

Micro SATA Cable PN # SFF-1119-3M
