USB 3.0 M.2 nVME SSD card

‌A USB 3.0 M.2 NVMe SSD card refers to a device that allows an M.2 NVMe SSD to be connected externally through a USB 3.0 interface.

1. M.2 NVMe SSD:

M.2 Form Factor: A small form factor for SSDs, typically available in sizes like 2280 (22mm wide, 80mm long). The M.2 interface allows the use of different storage protocols, like NVMe and SATA.

NVMe Protocol: Non-Volatile Memory Express is a storage protocol that operates over the PCIe (Peripheral Component Interconnect Express) interface, offering faster speeds and lower latency than traditional SATA SSDs.

2. USB 3.0 Interface:

USB 3.0 (also known as USB 3.1 Gen 1) supports data transfer speeds up to 5 Gbps (approximately 625 MB/s), which is significantly slower than the maximum speeds offered by NVMe drives over PCIe.

Connector Types: The USB 3.0 interface typically uses Type-A or Type-C connectors. When used with Type-A, it is backward compatible with older USB ports (like USB 2.0), but it will operate at a slower speed.

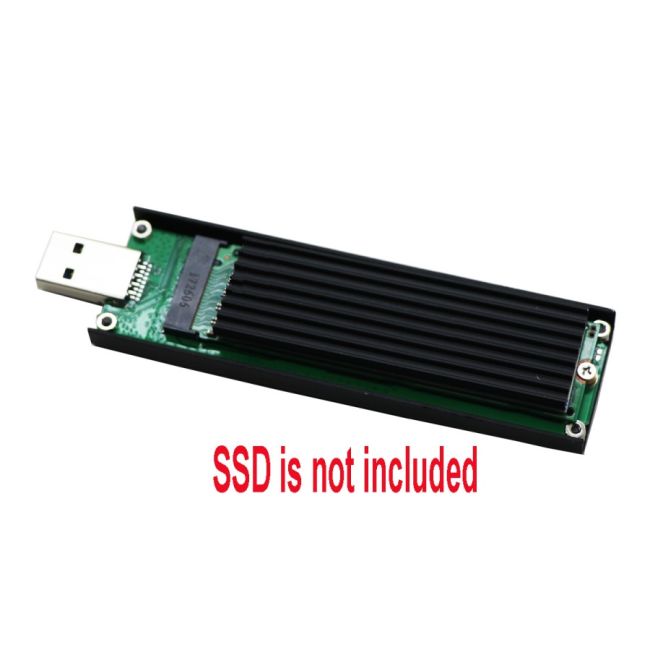

3. M.2 NVMe to USB 3.0 Adapter:

Functionality: An adapter or enclosure allows you to use an NVMe SSD externally by converting the PCIe-based M.2 connection into a USB 3.0 connection. However, because USB 3.0 is limited to 5 Gbps, you won’t be able to take full advantage of the NVMe drive’s potential performance (which can reach up to 32 Gbps over PCIe).

Power and Compatibility: These adapters typically draw power directly from the USB port, so no additional power source is needed. They are compatible with systems that have USB 3.0 or higher ports, but you might encounter a bottleneck when transferring large files or running high-performance tasks.
