U.2 to EDSFF 1C SSD Adapter PCIe 5.0
U.2 to EDSFF 1C SSD Adapter PCIe 5.0
This adapter is ideal for IT professionals and system integrators looking to upgrade storage solutions without modifying existing U.2 backplane infrastructure.

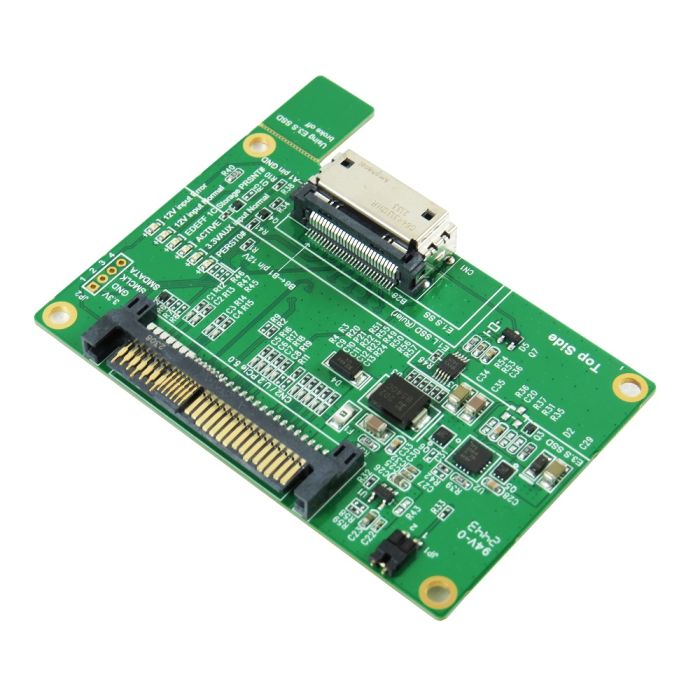

U.2 PCIe 5.0 to EDSFF (Gen-Z) 1C SSD Adapter
Features
• U.2(SFF-8639) to EDSFF(Gen-Z) 1C convert for PCIe 5.0 signals
• Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
• Built-in EDSFF(Gen-Z) 1C connector
• 12V Input power rail built-in 5A FUSE
• 12V Input power rail with 400W Bidirectional TVS
• 12V Input power rail built-in 5A Schottky barrier rectifier
• 12V Input power rail high side controller with Power NMOS FET
• Built-in 12V Hotswap Power controller with programmable Inrush Slew rate, support a maximum continuous current of 6.5A for EDSFF SSD protection
• Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm with Reverse current protection
• LED1 RED LED on indicates 12V input Power Error
• LED2 Green LED on indicates 12V power ready
• LED5 Green LED on indicates 3.3Vaux power ready
• LED6 Red LED indicates on to off for PCIe PERST# signals implementation
Specifications
• Compliant with NVM Express 2.0
• Support PCI Express Base Specification Rev 5.0
• Support SSD_Form_Factor_Version1_a
• Compliant with PCIe SFF-8639 Module Specification Rev 5.0
• Compliant with SFF-TA-1002 Rev1.5
Supports the following form factor EDSFF 1C (Gen-Z) SSD:
• EDSFF 1C(Gen-Z) SSD E1.S 5.9mm Height
• EDSFF 1C(Gen-Z) SSD E1.S 9.5mm Height
• EDSFF 1C(Gen-Z) SSD E1.S 15mm Height
• EDSFF 1C(Gen-Z) SSD E1.S 25mm Height
• EDSFF 1C(Gen-Z) SSD E1.L 9.5mm Height
• EDSFF 1C(Gen-Z) SSD E1.L 18mm Height
• EDSFF 1C(Gen-Z) SSD E3.S short single thickness device
• EDSFF 1C(Gen-Z) SSD E3.S 2T short double thickness device
• EDSFF 1C(Gen-Z) SSD E3.L long single thickness device
- EDSFF 1C(Gen-Z) SSD E3.L 2T long double thickness device
Micro SATA Cables PN # U2-2263-1C
| Part # | U2-2263-1C |
|---|---|
| Bar Code (UPC) | 611851927882 |
| Specifications | Key Features Interface Conversion: Converts U.2 (SFF-8639) connector to EDSFF E1.C form factor, enabling deployment of E1.C NVMe SSDs in U.2 backplanes. PCIe 5.0 Support: Delivers up to 32 GT/s per lane, maximizing bandwidth for high-speed NVMe storage applications. Backward Compatibility: Supports PCIe Gen 4 and Gen 3 for legacy system integration. Hot-Swappable Support: Enables drive swapping without system downtime (dependent on system and OS support). Robust Build: High-quality PCB design with optimized signal integrity for stable high-speed data transfers. Specifications Host Interface: U.2 (SFF-8639) Target Interface: EDSFF E1.C PCIe Support: PCIe Gen 5, backward compatible with Gen 4 & Gen 3 Data Transfer Rate: Up to 128 GB/s (PCIe 5.0 x4) Power Supply: 12V and 3.3V power from U.2 connector Form Factor: Standard adapter card with EDSFF E1.C slot Compliance: NVMe 2.0, PCIe 5.0, U.2 SFF-8639, and EDSFF E1.C specifications Applications Data Centers & Enterprise Storage: Enables transition from U.2-based storage to next-generation EDSFF E1.C NVMe SSDs. High-Performance Computing (HPC): Suitable for workloads requiring low latency and high bandwidth storage solutions. Cloud & Hyperscale Storage: Helps integrate high-density storage solutions for scalability and efficiency. |
