U.2 (SFF-8639) to PCI-e 4 Lane Adapter

$48.75
Availability: In stock
Only 8 left
Part #
SFF-993-U2-4L

U.2 (SFF-8639) to PCI-e GEN 3 X 4 Slot.

Micro SATA Cables PN # SFF-993-U2-4L

The U.2 (SFF-8639) interface is a high-speed data transfer standard that is used to connect solid-state drives (SSDs) and other storage devices to computer systems. It supports data transfer rates of up to 32 Gbps and provides a scalable interface for future storage devices.

A PCI-e 4 Lane Adapter is a hardware device that allows the U.2 interface to be connected to a computer system via the PCI Express (PCI-e) bus. The PCI-e 4 Lane Adapter provides four lanes of PCI-e connectivity, which can support data transfer rates of up to 16 Gbps per lane.

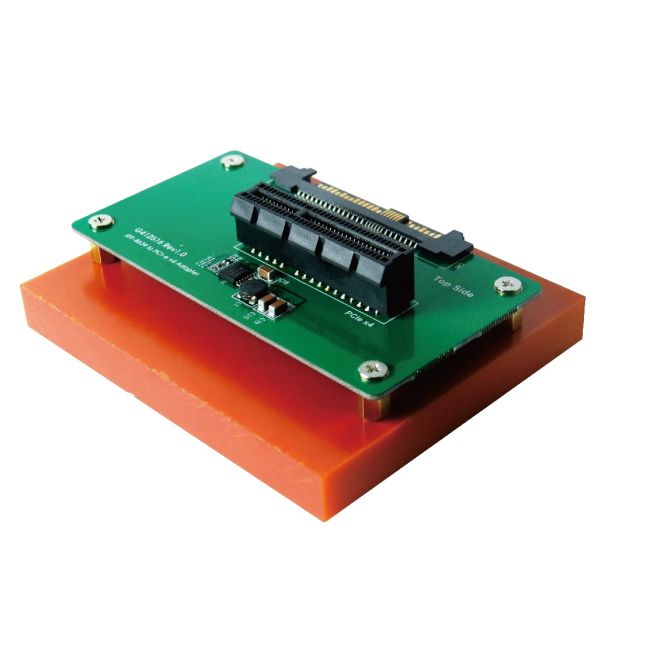

The U.2 to PCI-e 4 Lane Adapter typically consists of a printed circuit board (PCB) with a U.2 connector on one end and a PCI-e 4 Lane connector on the other end. The adapter is designed to fit into a PCI-e slot on a computer's motherboard, allowing the U.2 device to communicate with the system's processor and other components.

When a U.2 device is connected to a computer via a PCI-e 4 Lane Adapter, the system treats the device as a standard storage device. The operating system can access the device's data as if it were stored on a local hard drive, allowing the user to take advantage of the device's high-speed data transfer rates.

More Information
Part # SFF-993-U2-4L
Bar Code (UPC) 673681049592
Specifications

U.2 (SFF-8639) to PCI-e 4 Lane Adapter

Specifications:

  • 4-Layer PCB designed
  • Built-in SFF-8639 plug connector
  • Built-in PCI-e Gen 3 x4 slot connector
  • PCI Express Base Specification Rev 3.0
  • SFF 8639 Enterprise SSD Form Factor Version 1.0a
  • PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
  • NVM Express* 1.1
  • PWM synchronous buck converter Power IC
  • 3.3V, 4A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • ESD CDM (Charged Device Model) /500V

Supports SSD Devices :

PCI-e X4 NVMe SSD / PCI-e X4 AHCI SSD

Operating System Support :

  • Windows 7 - 64 bit
  • Windows 8 - 64 bit
  • Windows 8.1 - 64 bit
  • UFEI - 2.3.1 or later

Micro SATA Cables PN # SFF-993-U2-4L

Cable Options for Adapter :
  • Micro SATA Cables PN # U2-1173-50CM
  • ‌Micro SATA Cables PN #SFF-992-20CM
  • Micro SATA Cables PN #SFF-854-1M
  • Micro SATA Cables PN # M2-1495-SL
