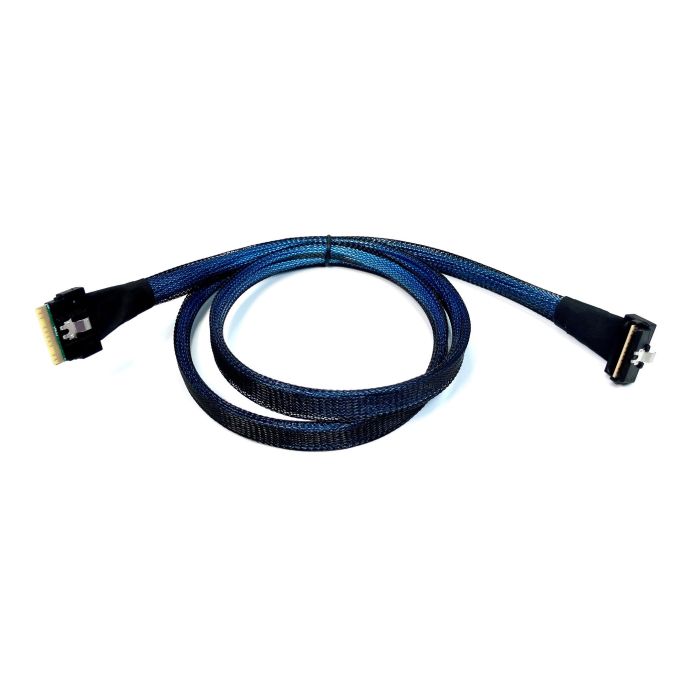

SlimSAS Straight 8i to Low Profile Right Angle 8i - 500mm

‌1. Overview:

The SlimSAS Straight 8i to Low Profile Right Angle 8i cable is a high-performance, specialized interconnect solution designed for data-intensive applications. This cable is engineered to facilitate reliable, high-speed data transfer between storage devices and controllers, often used in enterprise-level storage systems, servers, and high-performance computing (HPC) environments.

2. Cable Construction:

Cable Length: 500mm

Connector A: SlimSAS Straight 8i (8x PCIe lanes)

Connector B: SlimSAS Low Profile Right Angle 8i (8x PCIe lanes)

Wire Gauge: 30 AWG (typical for high-speed data transfer)

Cable Type: High-quality, low-latency shielded twisted pair (STP) cabling

Sheath Material: Durable PVC (Polyvinyl Chloride) outer jacket, providing flexibility and protection against wear and tear.

Color: Typically black for standard installations

3. Connector Specifications:

SlimSAS 8i (Straight):

Pin Configuration: 74-pin layout for data transfer and control signals

Interface Standard: PCIe 3.0/4.0, SAS 4.0 compliant

Retention Mechanism: Latching connector for secure connection

Contact Plating: Gold-plated contacts for reduced electrical resistance and improved signal integrity

SlimSAS 8i (Low Profile Right Angle):

Pin Configuration: 74-pin layout matching the straight connector

Profile: Low-profile design, ideal for compact or space-constrained installations

Angle: Right-angle (90 degrees) to facilitate routing in tight spaces

Retention Mechanism: Latching connector to ensure stable and reliable connections

Contact Plating: Gold-plated contacts to maintain high signal quality over time

4. Performance Characteristics:

Data Transfer Rate: Up to 12 Gbps per lane, supporting high-speed data applications such as RAID configurations and NVMe over Fabrics.

Signal Integrity: Superior shielding and twisted pair construction to minimize crosstalk, EMI (Electromagnetic Interference), and RFI (Radio Frequency Interference).

Operating Temperature Range: -20°C to +80°C, suitable for varied environmental conditions

Impedance: 85 ohms ± 10% for consistent signal performance

Insertion Loss: Low insertion loss to ensure high efficiency in data transmission

5. Applications:

Storage Systems: Ideal for connecting SAS or NVMe storage devices to host bus adapters (HBAs) or RAID controllers.

Servers: Suitable for data centers and enterprise servers requiring reliable, high-speed interconnects.

High-Performance Computing (HPC): Used in HPC environments for efficient data transfer between nodes and storage arrays.

Networking: Applicable in networking equipment requiring high-density, high-speed connections.

6. Compliance and Certifications:

RoHS Compliance: Ensures the cable is free from hazardous substances.

UL Certification: Safety certified by Underwriters Laboratories for secure usage in various environments.

REACH Compliance: Meets European standards for chemical safety.

7. Installation and Usage:

Ease of Installation: The right-angle connector allows for easier installation in confined spaces, while the latching mechanism ensures a secure connection.

Flexibility: The 1-meter length provides versatility for various installation scenarios, balancing length with signal integrity.

8. Environmental Considerations:

Durability: The PVC jacket offers protection against physical wear and environmental stressors such as humidity and temperature fluctuations.

Heat Resistance: The cable is designed to maintain performance in environments with varying temperatures, ensuring longevity and reliability.
