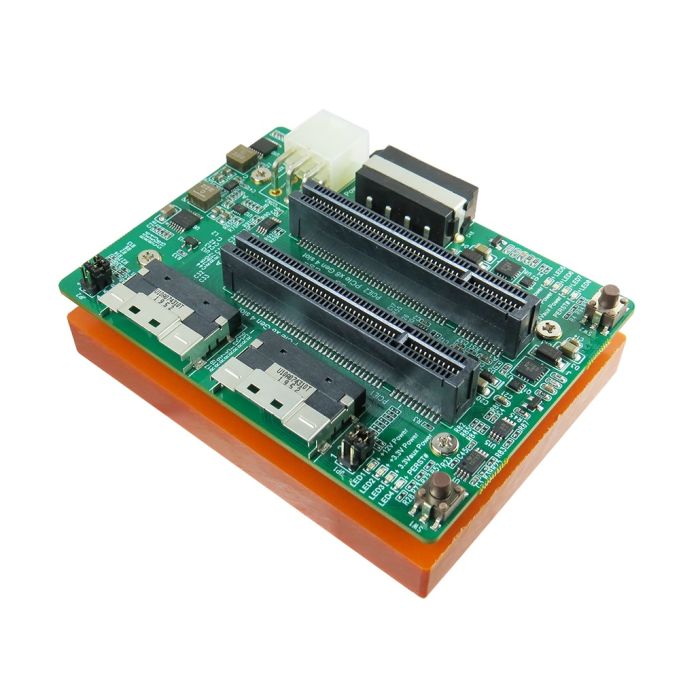

SlimSAS 8i x2 to PCIe x8 Gen 4 Slot Dual Port Open End Adapter

SlimSAS 8i x2 to PCIe x8 Gen 4 Slot Dual Port Open End Adapter

Features :

• SlimSAS 8i(SFF-8654) x2 to PCIe x16 convert
• Built-in SlimSAS 8i(SFF-8654), 30u”dual port connector
• Built-in PCIe x8, 15u”dual port Slot
• Built-in PCIe PERST# Bus Buffer
• Support PCIe PERST# manual reset & generator
• Built-in SMBus Hot Swappable 2-Wire Bus Buffer
• Supports I/O card insertion into a live PCIe Solt without corruption of the data and clock busses
• Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V

• • Programmable Current Limit: 6.5A
  • Programmable Inrush Current Slew Rate
  • Thermal shutdown protection and fault alert
  • Back-to-Back (B2B) FET Operation

• Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm
• Built-in 12V output with Schottky Barrier Power Rectifier
• PWM synchronous 12V to 3.3V buck converter Power

• • 4A maximum output current
  • Over Current Protection
  • Under Voltage Protection
  • Under voltage lock out protection (UVLO) monitors
  • Thermal shutdown protection
  • ESD Human Body Mode(HBM)/2KV

Specifications :

• Support PCI Express Base Specification Rev 4.0
• Compliant with SFF-8654 Rev1.2
• Compliant with SFF-9402 Rev1.1
• Support Broadcom Compliant with SFF-9402 Rev1.1

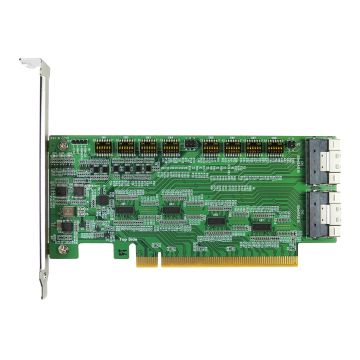

Often sold with PN # SLM-1773-8I PCIe x16 Gen4 with ReDriver to SlimSAS 8i Dual Port AIC

Micro SATA Cables PN # SLM-1924-2X8
