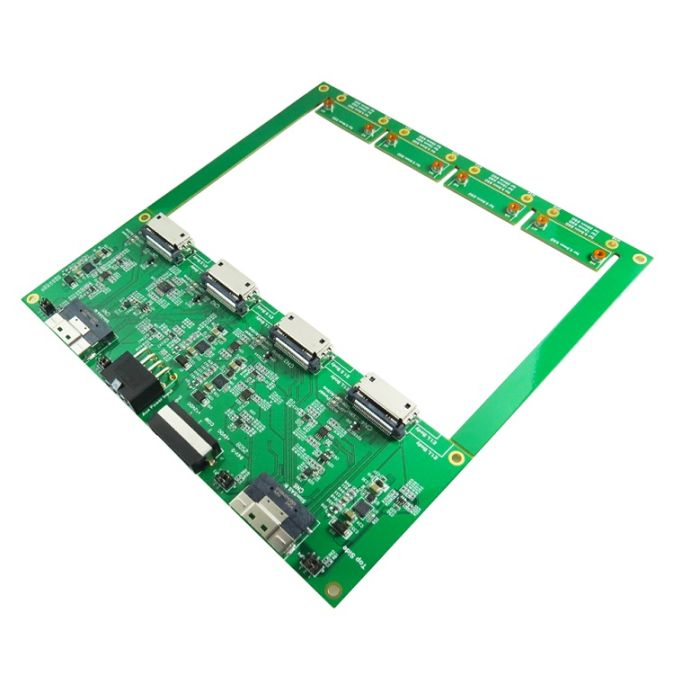

SlimSAS 8i x2 PCIe 4.0 for EDSSF 1C Quad Port Adapter

SlimSAS 8i x2 to EDSFF 1C(Gen-Z) SSD QUAD for PCIe 4.0 x8 PCIe x16 AIC

Features

• Gen-Z 1C Quad port to SlimSAS 8i(SFF-8654) convert

• Built-in SFF-8654 8i two connectors, pin-out defined by SFF-9402 Rev1.1

• Built-in Gen-Z 1C four connectors

• Built-in 12V Hot Plug Power with eFuse protection for each Gen-Z 1C

o Programmable Current Limit: 6.5A

o Programmable Inrush Current Slew Rate

o Thermal shutdown protection and fault alert

• Supports Gen-Z 1C to PCIe CLKREQ#, WAKE#, PWRBRK#

• Supports Gen-Z 1C PWRDIS, SMBRST# control

• Built-in SMBus Hot Swappable 2-Wire Bus Buffer for each Gen-Z 1C

• Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters

• Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters

• LED1, LED3,LED5, LED7 Green LED on indicates Gen-Z 1C power ready

• LED2, LED4,LED6, LED8 Red LED Blinking indicates Gen-Z 1C active status

Specifications :

• Compliant with NVM Express 1.3a

• Support PCI Express Base Specification Rev 4.0

• Support SSD_Form_Factor_Version1_a

• Compliant with SFF-8654 Rev1.2

• Compliant with SFF-9402 Rev1.1

• Compliant with SFF-TA-1002 Specification Version 1.3

• Compliant with SFF-TA-1006 Specification Version 1.4

• Compliant with SFF-TA-1009 Specification Version 3.0

• Compliant with SFF-TA-1020 Specification Version 1.0

Supports the following form factor EDSFF 1C(Gen-Z) SSD:

• EDSFF 1C(Gen-Z) SSD E1.S 5.9mm Height

• EDSFF 1C(Gen-Z) SSD E1.S 9.5mm Height

• EDSFF 1C(Gen-Z) SSD E1.S 15mm Height

• EDSFF 1C(Gen-Z) SSD E1.S 25mm Height

• EDSFF 1C(Gen-Z) SSD E1.L 9.5mm Height

• EDSFF 1C(Gen-Z) SSD E1.L 18mm Height

Micro SATA Cables PN # SLM-1860-8I
