SlimSAS 8i to M.2 Dual Ports for Broadcom MegaRAID & HBA Tri-Mode & NVMe Switch

$82.75
Availability: In stock
Only 3 left
Part #
SLM-1737-M2

Upgrade your storage system with the SlimSAS 8i to M.2 Dual Ports Adapter. Designed for Broadcom MegaRAID & HBA Tri-Mode & NVMe Switch, this adapter supports dual M.2 ports, ensuring fast and reliable data transfer. Ideal for high-performance setups.

Elevate your storage capabilities with the SlimSAS 8i to M.2 Dual Ports Adapter, specifically designed for Broadcom MegaRAID & HBA Tri-Mode & NVMe Switch. This versatile adapter features dual M.2 ports, allowing you to connect multiple M.2 SSDs directly to your SlimSAS 8i interface. The SlimSAS 8i to M.2 Dual Ports Adapter supports high-speed data transfer, making it perfect for systems requiring enhanced performance and reliability. It’s an excellent choice for those looking to expand their storage with cutting-edge M.2 NVMe SSDs while maintaining compatibility with existing Broadcom MegaRAID and HBA setups. Key Features: 1. Dual M.2 Ports: Connect two M.2 NVMe SSDs for increased storage capacity and performance. 2. Broadcom MegaRAID Compatibility: Designed to work seamlessly with Broadcom MegaRAID & HBA Tri-Mode & NVMe Switch. 3. High-Speed Data Transfer: Ensures fast and efficient data handling for demanding applications. 4. Easy Integration: Simple installation with no additional drivers required for most systems. Applications: 1. Ideal for high-performance computing setups where fast data transfer is crucial. 2. Perfect for upgrading storage in server environments and workstations. 3. Suitable for use in data-intensive tasks such as video editing, gaming, and large-scale data processing. The SlimSAS 8i to M.2 Dual Ports Adapter is your solution for optimizing storage solutions and enhancing system performance.

More Information
Part # SLM-1737-M2
Bar Code (UPC) 673681049820
Specifications

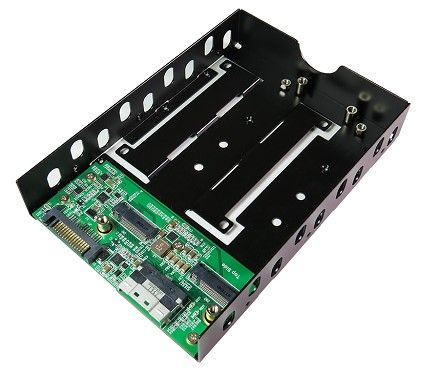

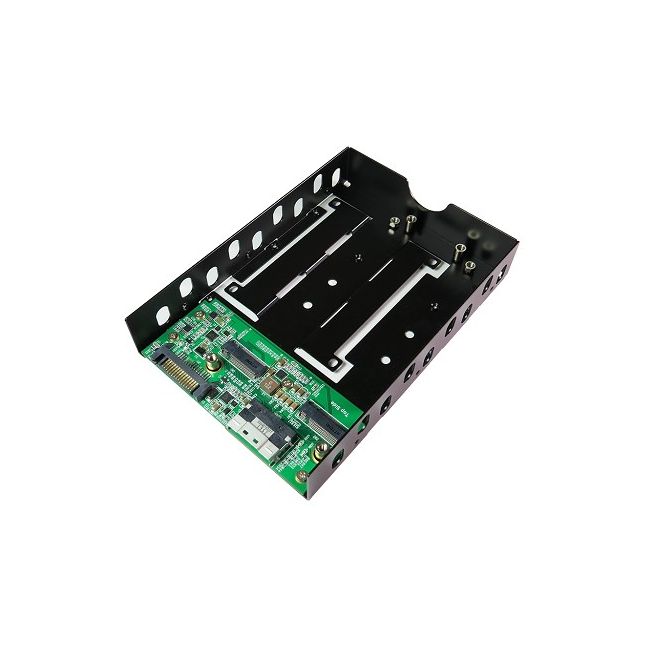

SlimSAS 8i PCIe Gen 4 for M.2 Dual Ports with 3.5” Enclosure

SlimSAS 8i (SFF-8654) to M.2 Dual Ports for PCIe 4.0 x8 Bifurcated

Features :

  • M.2 dual ports to SlimSAS 8i(SFF-8654) convert
  • Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1
  • Built-in two M.2 M-key connector
  • PWM synchronous buck converter Power for M.2 dual ports SSD
    • 8A maximum output current
    • Over Current Protection
    • Under Voltage Protection
    • Under voltage lock out protection (UVLO) monitors
    • Thermal shutdown protection
    • ESD Human Body Mode(HBM)/2KV
  • Built-in two 3.3V Hot Plug Power with eFuse protection for M.2 dual ports
    • Programmable Current Limit: 6.5A
    • Programmable Inrush Current Slew Rate
    • Thermal shutdown protection and fault alert
    • Back-to-Back (B2B) FET Operation
  • Supports M.2 to PCIe CLKREQ#, WAKE#
  • Supports M.2 /1.8V to PCIe/3.3V SMB_CLK, SMBDATA Level Shift
  • Supports M.2 /1.8V to PCIe /3.3V SMB_CLK, SMB_DATA isolated, repeater
  • Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • LED5, LED6 Green LED on indicates M.2 NVMe SSD power ready
  • LED1, LED2 RED LED Blinking indicates M.2 active status
Specifications :
  • Compliant with NVM Express 1.3a
  • Support PCI Express Base Specification Rev 4.0
  • Support SSD_Form_Factor_Version1_a
  • Compliant with PCI Express M.2 Specification Version 1.2
  • Compliant with SFF-TA-1001 Rev1.1
  • Compliant with SFF-8654 Rev1.2
  • Compliant with SFF-9402 Rev1.1
Support Models :
  • MegaRAID 9560-16i
  • MegaRAID 9560-8i
  • MegaRAID 9580-8i8e
  • HBA 9500-16i
  • HBA 9500-8i
  • P411W-32P
Supports the following Form Factors :
  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
  • Type 22110-D2-B-M: 110mm(L) x 22mm(W)
Micro SATA Cables PN #SLM-1737-M2

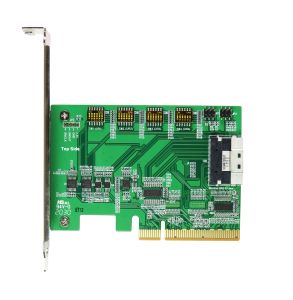

Unit can be used with Micro SATA Cables Part# PCI8-1736-SLM

PCIe x8 Gen4 with ReDriver to SlimSAS 8i Add-in-Card

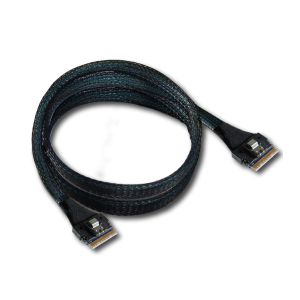

Unit can be used with Micro SATA Cables Part# SLM-1778-1M

PCIe Gen 4 16GT/s SlimSAS 8-Lane (SFF-8654 8i) Cable 1 Meter‌

SlimSAS 8-Lane to SlimSAS 8-Lane Cable L: 100cm (PCIe Gen4)
