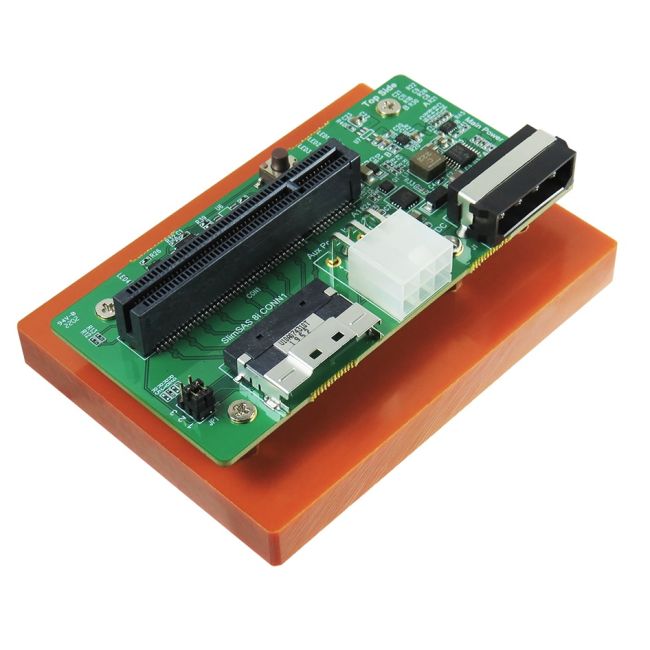

SlimSAS 8i (SFF-8654) to PCIe x8 Slot Adapter
This PCIe x8 adapter provides exceptional performance in terms of data transfer speed and reliability. It is the perfect solution for connecting a SAS2 drive to a computer system via a PCIe slot.
The SlimSAS 8i (SFF-8654) to PCIe x8 Slot Adapter is a small form factor adapter that allows for the connection of SAS or SATA devices to a PCIe x8 slot. It utilizes the SlimSAS interface, which is a high-density, low-profile interface that supports up to eight SAS/SATA ports. The adapter is designed to fit into a PCIe x8 slot and provides full-height and half-height bracket options for flexible installation. It also supports PCIe 3.0 speeds and provides an integrated power connector for reliable device operation. Overall, the SlimSAS 8i to PCIe x8 Slot Adapter is a reliable and efficient solution for connecting SAS/SATA devices to a PCIe infrastructure.
Micro SATA Cables Part #SLM-1767-8I
Part # | SLM-1767-8I |
---|---|
Bar Code (UPC) | 611851924584 |
Specifications | SlimSAS 8i (SFF-8654) to PCIe x8 Slot Adapter Features : ※ SlimSAS 8i(SFF-8654) to PCIe x8 convert ※ Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1 ※ Built-in PCIe x8 Slot ※ Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V ◆ Programmable Current Limit: 6.5A ◆ Programmable Inrush Current Slew Rate ◆ Thermal shutdown protection and fault alert ◆ Back-to-Back (B2B) FET Operation ※ PWM synchronous 12V to 3.3V buck converter Power ◆ 4A maximum output current ◆ Over Current Protection ◆ Under Voltage Protection ◆ Under voltage lock out protection (UVLO) monitors ◆ Thermal shutdown protection ◆ ESD Human Body Mode(HBM)/2KV ※ Built-in 3.3V Power Load Switch for PCIe +3.3V ※ 12V to 3.3V LDO buck converter Power ※ Built-in 3.3V Power Load Switch for PCIe 3.3Vaux ※ Built-in SMBus Hot Swappable 2-Wire Bus Buffer ※ Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters ※ Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters ※ LED1 PCIe +12V power ready ※ LED2 PCIe +3.3V power ready ※ LED3 PCIe 3.3Vaux power ready Specifications :
※ Support PCI Express Base Specification Rev 4.0 ※ Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB ※ Compliant with SFF-8654 Rev1.2 ※ Compliant with SFF-9402 Rev1.1 ※ Support Broadcom Compliant with SFF-9402 Rev1.1 Micro SATA Cables PN # SLM-1767-8I |
