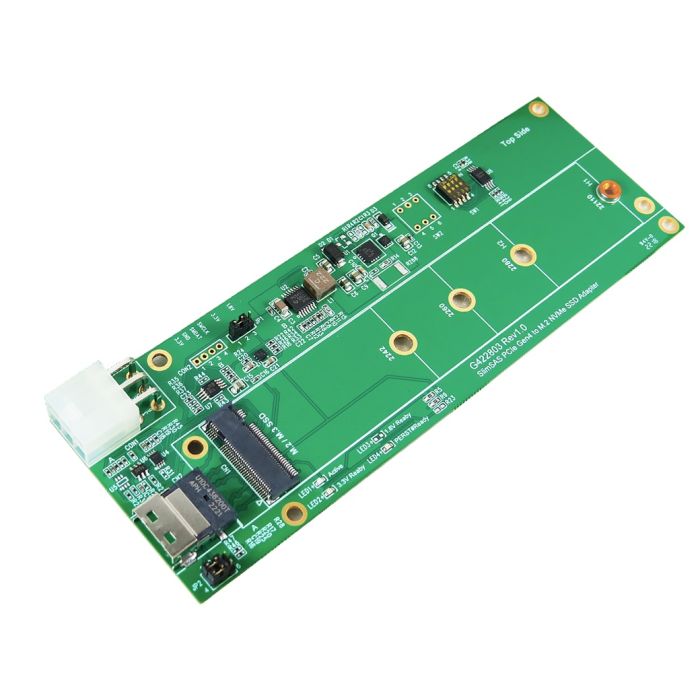

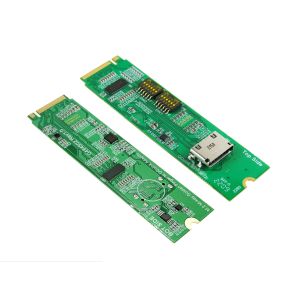

SlimSAS 4i PCIe 4.0 to M.2 NVMe SSD Adapter

M.2 NVMe to SlimSAS 4i(SFF-8654) convert
• Built-in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1
• Built-in PCIe 2x3 Auxiliary Power Connector for 12V, 6.5A MAX.curerent input
• 12V to 3.3V PWM synchronous buck converter Power for M.2 NVMe SSD
• 5.5A maximum output current
• Output Discharge Control
• The output overcurrent protection (OCP)
• Undervoltage lock out protection (UVLO) monitor
• Over/Under Voltage Protection
• Thermal shutdown protection
• ESD HBM (Human Body Mode)/500V
• Built-in 3.3V Hot swap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
• Built-in 3.3V input with 400W TVS (TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
• Built-in 3.3V output with 30-V, N channel NexFET power MOSFET protection
• Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
• Supports 3.3V&1.8V power rail for sideband signals
• Supports M.2 VIO_CFG Signal
• Supports M.2 PERST# Signal 3.3V and 1.8V voltage level shift
• Supports M.2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
• Supports M.2 WAKE# Signal 3.3V and 1.8V voltage level shift
• Supports PWRDIS Signal from SlimSAS 4i(SFF-8654) to M.2 pin out
• Supports M.2 /1.8V to SlimSAS 4i /3.3V SMBus Hot Swap, Level Shift
• Supports M.2 /1.8V to SlimSAS 4i /3.3V SMBus isolated, repeater.
• Built-in SMBus EEPROM 64KB
• LED1 RED Blinking indicates M.2 active
• LED2 Green ON indicates 3.3V Power Ready
• LED4 Green OFF indicates PERST# Normal (Function intentionally inverted
• Compliant with NVM Express 1.3a
• Support PCI Express Base Specification Rev 4.0
• Compliant with PCI Express M.2 Specification Version 1.2
• Compliant with SFF-8654 Rev 1.2
Supports the following form factor M.2(NGFF) SSD:
• Type 2242-D2-B-M: 42mm(L) x 22mm(W)
• Type 2260-D2-B-M: 60mm(L) x 22mm(W)
• Type 2280-D2-B-M: 80mm(L) x 22mm(W)
• Type 22110-D2-B-M: 110mm(L) x 22mm(W)
