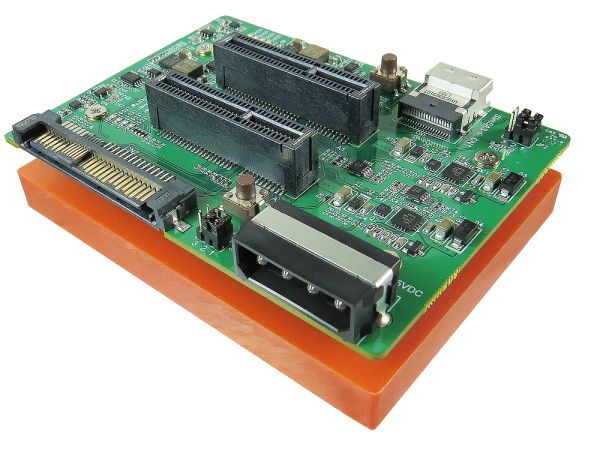

SlimSAS 4i (SFF-8654) to PCIe x4 Slot and U.2 (SFF-8639) to PCIe x4 Slot Adapter

SlimSAS 4i (SFF-8654) to PCIe x4 Slot and U.2 (SFF-8639) to PCIe x4 Slot Adapter

Features :

• U.2(SFF-8639) to PCIe x4 convert
• SlimSAS 4i(SFF-8654) to PCIe x4 convert
• Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
• Built-in SFF-8654 4i connector, pin-out defined by SFF-9402 Rev1.1
• Built-in PCIe x4 Slot x2
• Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
• • Programmable Current Limit: 6.5A
  • Programmable Inrush Current Slew Rate
  • Thermal shutdown protection and fault alert
  • Back-to-Back (B2B) FET Operation
• PWM synchronous 12V to 3.3V buck converter Power
• • 4A maximum output current
  • Over Current Protection
  • Under Voltage Protection
  • Under voltage lock out protection (UVLO) monitors
  • Thermal shutdown protection
  • ESD Human Body Mode(HBM)/2KV
• Built-in 3.3V Power Load Switch for PCIe +3.3V
• 12V to 3.3V LDO buck converter Power
• Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
• Built-in SMBus Hot Swappable 2-Wire Bus Buffer
• Supports SlimSAS 4i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters

• LED1, LED5 PCIe +12V power ready
• LED2, LED6 PCIe +3.3V power ready
• LED3, LED7 PCIe 3.3Vaux power ready
• LED4, LED8 PCIe PERST#

Specifications :

• Support PCI Express Base Specification Rev 4.0
• Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
• Compliant with SFF-8654 Rev1.2
• Compliant with SFF-9402 Rev1.1
• Support Broadcom Compliant with SFF-9402 Rev1.1
• SlimSAS 4i (SFF-8654)to PCIe x4 slot and U.2 (SFF-8639) to PCIe x4 slot Adapter

Micro SATA Cables PN #SLM-1870-X4
