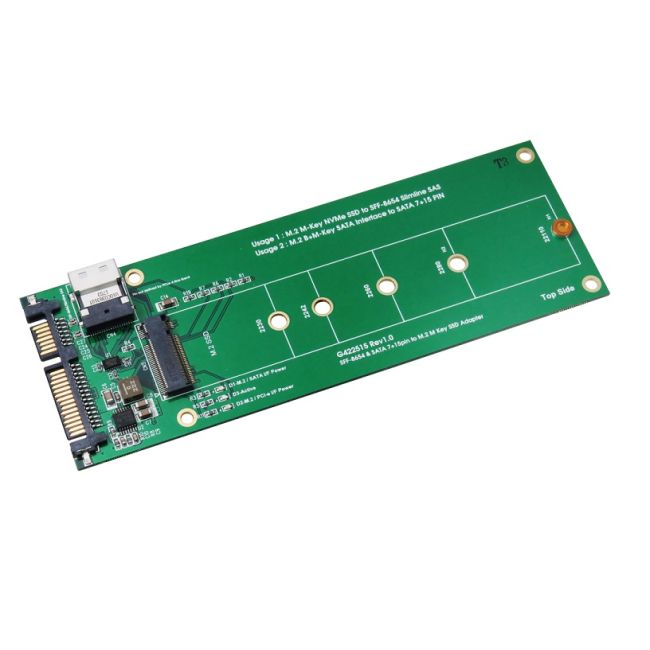

Slimline SAS (SFF-8654) and SATA to M.2 SSD Adapter
M.2 NVMe to Slimeline SAS(SFF-8654) convert
Slimline SAS (SFF-8654) and SATA to M.2 SSD Adapter
M.2 NVMe to Slimeline SAS(SFF-8654) Convert
Specifications :
• M.2 NVMe to Slimeline SAS (SFF-8654) convert
• M.2 SATA I/F to SATA convert
• Build in M.2 M-key Female connector
• Build in SFF-8654 connector, pin-out defined by PCIe
• Built in SATA 7+15 Pin connector
• PWM synchronous buck converter Power IC
• 4A maximum output current
• Short circuit protection
• In-rush current suppression
• Thermal shutdown protection
• ESD HBM (Human Body Mode)/2KV
• D1 Green LED on indicates M.2 SATA I/F power ready
• D2 Green LED Blinking indicates M.2 NVMe power ready
• D3 RED LED Blinking indicates M.2 SSD active status
Specification :
Compliant with NVME Express 1.0A
Supports PCI Express Base Specification Rev 3.0
Supports SSD Form Factor Version 1a
Compliant with PCI Express M.2 Specification Version 1.0
Compliant with SFF-8639 Specification Rev 2.0
Compliant with SerialATA_ Revision_3_2 _Gold s
Compliant with SFF-8654 Rev 1.0
SSD's shown in pictures are for illustration only and are not included.
M.2 SSD Form Factor Support :
Supports M.2 Socket SSD type 2242, type 2260, type 2280 and type 22110 D2 - B - M
Micro SATA Cables PN # SLM-1368-M2
| Part # | SLM-1368-M2 |
|---|---|
| Bar Code (UPC) | 646791002122 |
| Specifications | Slimline SAS (SFF-8654) and SATA to M.2 SSD Adapter M.2 NVMe to Slimeline SAS(SFF-8654) Convert Specifications :• M.2 NVMe to Slimeline SAS (SFF-8654) convert • M.2 SATA I/F to SATA convert • Build in M.2 M-key Female connector • Build in SFF-8654 connector, pin-out defined by PCIe • Built in SATA 7+15 Pin connector • PWM synchronous buck converter Power IC • 4A maximum output current • Short circuit protection • In-rush current suppression • Thermal shutdown protection • ESD HBM (Human Body Mode)/2KV • D1 Green LED on indicates M.2 SATA I/F power ready • D2 Green LED Blinking indicates M.2 NVMe power ready • D3 RED LED Blinking indicates M.2 SSD active status Specification :Compliant with NVME Express 1.0A Supports PCI Express Base Specification Rev 3.0 Supports SSD Form Factor Version 1a Compliant with PCI Express M.2 Specification Version 1.0 Compliant with SFF-8639 Specification Rev 2.0 Compliant with SerialATA_ Revision_3_2 _Gold s Compliant with SFF-8654 Rev 1.0 SSD's shown in pictures are for illustration only and are not included. M.2 SSD Form Factor Support :Supports M.2 Socket SSD type 2242, type 2260, type 2280 and type 22110 D2 - B - M Micro SATA Cables PN # SLM-1368-M2 |
