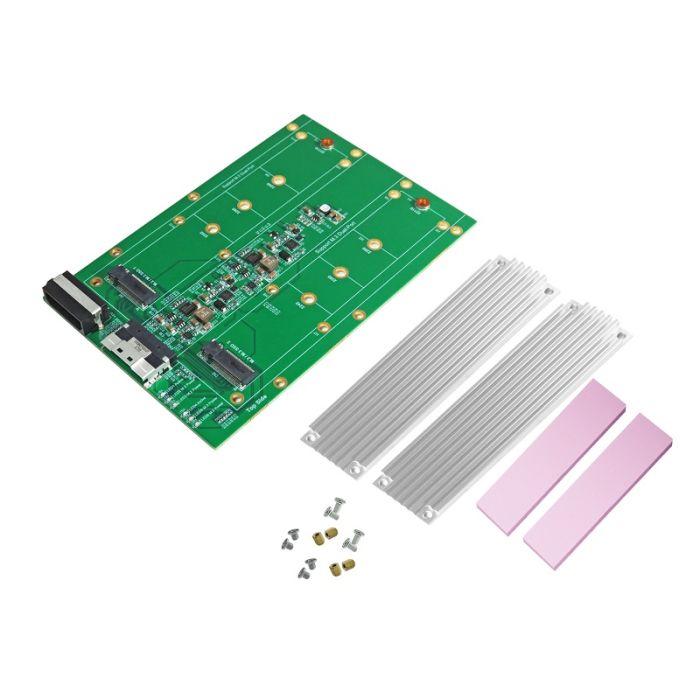

Slimline SAS 8i to M.2/M.3 (NF1) NVMe SSD Dual Port

‌Slimline SAS 8i to M.2/M.3 (NF1) NVMe SSD Dual Port

$78.75
Availability: In stock
Only 3 left
Part #
SAS-1579-M2

‌Slimline SAS 8i to M.2/M.3 (NF1) NVMe SSD Dual Port

Unit can be used with our cable Micro SATA Cables PN # MIC72-9101

Features

  • Built-in SFF-8654 8x(Slimline SAS) Female connector, pin defined by PCIe
  • Built-in M.2 M-key Female connector, pin-out defined by PCIe
  • D1 Green LED on indicates M.2 SSD power ready
  • D2 Green LED on indicates M.3 SSD power ready
  • D3 RED LED Blinking indicates M.2 or M.3 NF1 active status
  • D4 Green LED on indicates M.2 SSD power ready
  • D5 Green LED on indicates M.3 SSD power ready
  • D6 RED LED Blinking indicates M.2 or M.3 NF1 active status

Specifications

  • Compliant with NVM Express 1.0a
  • Supports PCI Express Base Specification Rev 3.1
  • Compliant with PCI Express M.2 Specification Version 1.1
  • Compliant with Samsung M.3 Specification Ver. 0.4
  • Supports SSD_Form_Factor_Version1_a
  • Compliant with SFF-8654 Specification Rev 1.2
  • Compliant with SFF-9402 Specification Rev 1.0
  • Compliant with Broadcom MegaRAID and HBA Tri-mode Storage Adapter

This adapter is specially designated for Broadcom MegaRAID & HBA Tri-Mode Storage Adapters. Supporting list as following:

1. MegaRAID 9460-16i Tri-Mode Storage Adapter

2. MegaRAID 9460-8i Tri-Mode Storage Adapter

3. MegaRAID 9480-8i8e Tri-Mode Storage Adapter

4. MegaRAID 9440-8i Tri-Mode Storage Adapter

5. HBA 9400-16i Tri-Mode Storage Adapter

6. HBA 9400-8i Tri-Mode Storage Adapter

7. HBA 9400-8i8e Tri-Mode Storage Adapter

8. HBA 9405W-16i Tri-Mode Storage Adapter

The adapter also supports the following Intel units :

1. RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports

2. RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports

3. RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports

4. RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports

Supports the following M.2 & M.3 SSD Form Factor :

Type 2242-D2-B-M: 42mm(L) x 22mm(W)

Type 2260-D2-B-M: 60mm(L) x 22mm(W)

Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Type 22110-D2-B-M: 110mm(L) x 22mm(W)

Type 305110-D2-B-M: 110mm(L) x 30.5mm(W) for M.3 NF

Micro SATA Cables PN # SAS-1579-M2
