SlimSAS SFF-8654 4i Straight to SFF-8639 U.2 Cable -50CM

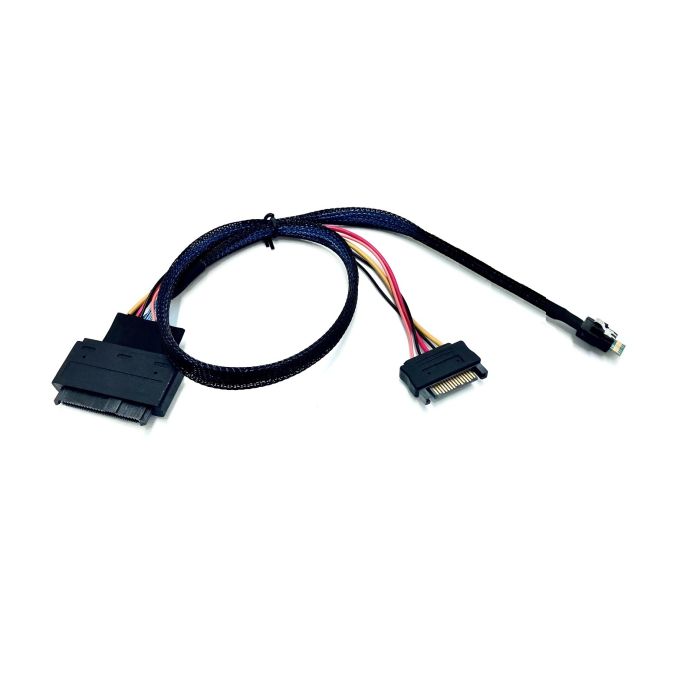

Slim SAS SFF-8654 4i Straight to SFF-8639 U.2 Cable (50cm)

RSL38-0340

Description:

This U.2 (SFF-8639) to SFF-8654

Slim SAS SFF-8654 4i Straight to SFF-8639 U.2 Cable

Applications

• Servers
• Data Storage
• Workstation
• Features and Benefits

Smaller size connector and cable saves device space

Provide four channels signal transmission as per industry standard

Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel

Meet SAS3.0, Ultraport SlimSAS SFF-8654 specification

Mechanical Performance

• Ultraport SlimSAS 4i plug
• Mating Force: 150N maximum
• Unmating Force: 50N maximum
• Rated durability cycles: 250 cycles minimum

Mating Force: 150N maximum

Unmating Force: 50N maximum

Rated durability cycles: 250 cycles minimum

Electrical Performance

• Voltage: 30VDC per contact
• Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum.
• HD Mini SAS 4i plug: 30mohm max. initial, 20mohm maximum.
• Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
• Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity

• Mated Connector Impedance: 85 ±10% ohm or 100+/-10% ohm
• Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification
• Insertion loss: meet PCIe Gen3 and SAS4.0 specification
• Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification

Product Environmental Compliance

• RoHS2.0: Compliant
• ChinaRoHS: Yes
• REACH SVHC: Yes
• Low-Halogen Status: Not Reviewed
• Cable length approx. 50cm

Micro SATA Cables PN # SLM-2187-U2
