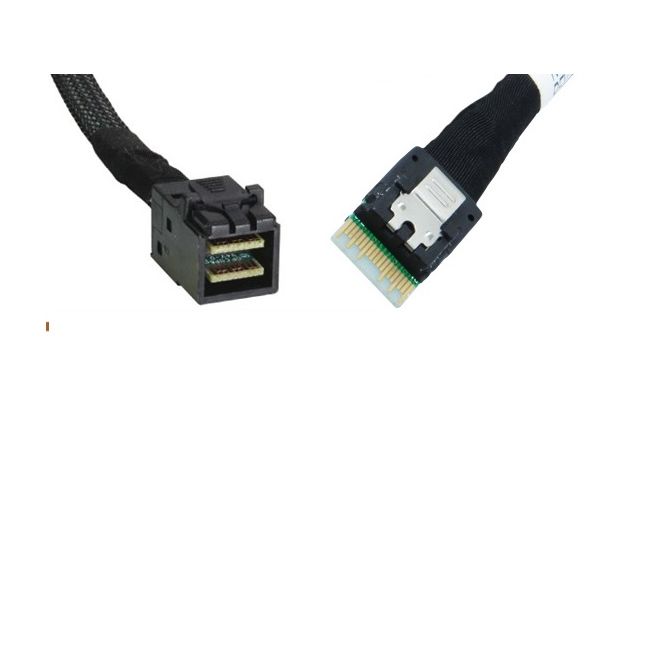

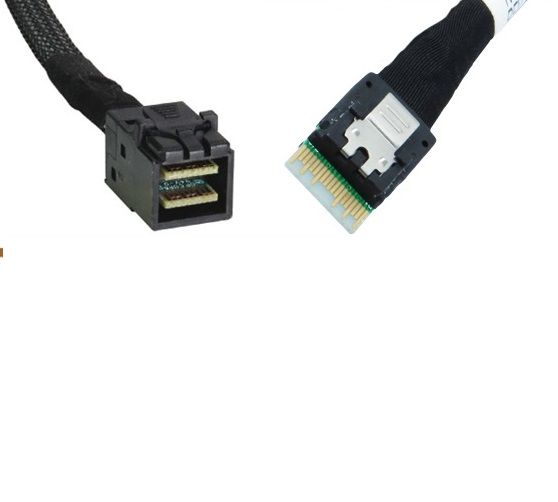

Slim SAS SFF-8654 4i Straight to HD Mini SAS 4i SFF-8643 Cable 50CM

SlimSAS 4i Straight to HD MiniSAS 4i

Recommended for use with MSC PN#s

• PN# SAS-1388-U2‌3.5 Inch Mini SAS HD Housing and SATA to U.2 (SFF-8639) Female Adapter

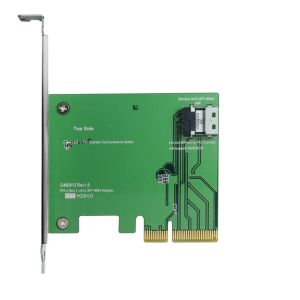

• PN# SSFF-1168-4L Slim SAS (SFF-8654) to PCIe 4 Lane Adapter

Applications: >Servers, Data Storage, Workstation

Featuresand Benefits

• Smaller size connector and cable saves device space
• Provide four channels signal transmission as per industry standard
• Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
• Meet SAS3.0, Ultraport SlimSAS SFF-8654, SFF-8643 specification

Mechanical Performance

Ultraport SlimSAS 4i plug

• Mating Force: 150N maximum
• Unmating Force: 50N maximum
• Rated durability cycles: 250 cycles minimum

HD Mini SAS 4i plug

• Mating Force: 150N maximum
• Unmating Force: 50N maximum
• Rated durability cycles: 250 cycles minimum

Electrical Performance

• Voltage: 30VDC per contact
• Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum.
• HD Mini SAS 4i plug: 30mohm max. initial, 20mohm maximum.
• Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
• Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity

• Mated Connector Impedance: 85 ±10% ohm or 100+/-10% ohm
• Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification
• Insertion loss: meet PCIe Gen3 and SAS4.0 specification
• Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification

Product Environmental Compliance

• RoHS2.0: Compliant
• REACH SVHC: Yes
• Low-Halogen Status: Not Reviewed

Cable length approx. 50cm

Micro SATA Cables PN # RSL38-0501
