Out of stock

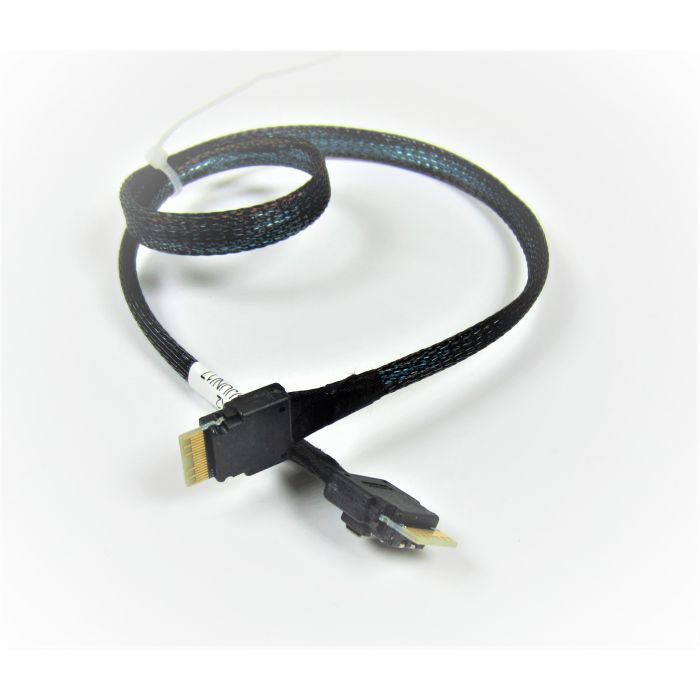

Slim SAS SFF-8654 4i Straight to Straight SFF-8654 4i Cable - 30 CM

Part #SSFF-2162-30CM
$26.20

This Slim SAS 4i Straight to Straight SFF-8654 to SFF-8654 Cable (30cm) has a Smaller size connector and cable, which saves device space.

More Information

Part # SSFF-2162-30CM
Bar Code (UPC) MSC
Specifications

Slim SAS 4i Straight to Straight SFF-8654 to SFF-8654 Cable (30cm)

Applications

  • Servers
  • Data Storage
  • Desktops
  • Workstation

Features and Benefits

  • Smaller size connector and cable saves device space
  • Provide four channels signal transmission as per industry standard
  • Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
  • Meet SAS4.0 and Ultraport SlimSAS SFF-8654 specification

Mechanical Performance

  • Retention Force: 50N minimum
  • Rated durability cycles: 50 cycles minimum

Electrical Performance

  • Voltage: 30VDC per contact 30mohm max. initial, 15mohm maximum.
  • Dielectric Withstanding Voltage: 250 VDC minimum for 100 ms
  • Insulation Resistance: 100 MΩ minimum between adjacent terminal

Signal Integrity

  • Mated Connector Impedance: 85 ±10% ohm and 100+/-10% ohm
  • Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification
  • Insertion loss: meet PCIe Gen3 and SAS4.0 specification,
  • Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification

Product Compliance

  • RoHS2.0: Compliant
  • RoHS: Yes
  • REACH SVHC: Yes
  • Low-Halogen Status: Not Reviewed
  • Cable length Approx - 30 cm

Micro SATA Cables PN # SSFF-2162-30CM
