SATA III 22 Pin Right Angle Extension Cable 80 MM

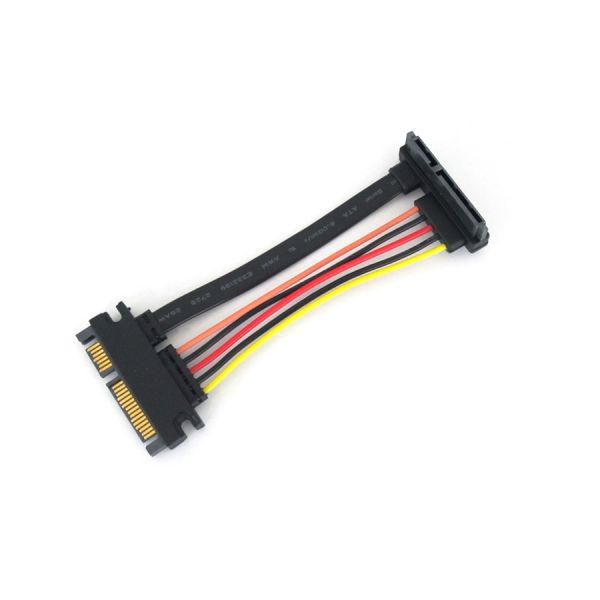

‌The 22-Pin SATA Male to Female Right Angle Power and Data Extension Cable is a specialized cable designed to extend both the power and data connection of a SATA device within a computer. It provides flexibility for routing cables in tight spaces while maintaining secure and stable connections for storage devices such as hard drives, SSDs, or optical drives.

Key Features:

22-Pin SATA Male Connector: One end of the cable features a standard 22-pin SATA male connector, which combines 7 pins for data transfer and 15 pins for power delivery. This connector is used to interface with the SATA female port on the motherboard, SATA controller, or another extension cable.

22-Pin SATA Female Connector: The other end of the cable has a 22-pin SATA female connector, which also combines the 7-pin data and 15-pin power interfaces. This connector attaches to a SATA device such as a hard drive, SSD, or optical drive, facilitating both data and power connections through a single interface.

Right-Angle Design: The right-angle connector on the male side allows for better cable management and more flexible routing options in confined spaces. It is particularly useful in situations where straight connectors might be blocked by other components or the chassis, allowing the cable to bend at a 90-degree angle for easier connection.

Technical Specifications:

Connectors:

Input: 22-pin SATA male connector (7-pin data + 15-pin power) with a right-angle design.

Output: 22-pin SATA female connector (7-pin data + 15-pin power).

Cable Length: The cable typically measures between 8 to 12 inches (approximately 20 to 30 cm) in length, providing sufficient extension for internal connections while minimizing excess cable clutter within the case.

Functionality:

Power and Data Extension: This cable extends both the power and data connections of a SATA device, making it easier to position drives or re-route connections within the computer case. It is ideal for scenarios where the existing cable length is insufficient or when you need to adjust the location of a SATA device for better airflow or easier access.

Right-Angle Advantage: The right-angle male connector enables the cable to bend neatly at a 90-degree angle, which is especially helpful in cramped cases or behind hard drive cages where straight connectors would be impractical.

Build and Durability:

The cable is typically constructed with high-quality materials, including insulated wiring to ensure reliable power delivery and interference-free data transmission. The connectors are designed for secure, tight fits to prevent accidental disconnections or signal degradation during operation.

The cable is engineered for flexibility without sacrificing durability, allowing for repeated bending and adjustments in tight spaces.

Compatibility:

Compatible with SATA I, II, and III devices, supporting data transfer speeds up to 6 Gb/s. It works with standard 2.5-inch and 3.5-inch SATA hard drives, SSDs, and optical drives.

Suitable for use in desktop PCs, workstations, servers, and NAS systems where internal SATA devices are used.

Use Cases:

Cable Management: Ideal for improving cable routing within tight or cluttered cases, particularly where space is limited and straight connectors would cause interference with other components.

Drive Positioning: Enables better positioning of drives within the chassis for improved airflow, cooling, or accessibility without being constrained by the original length of the SATA cable.

Component Upgrades: Useful for users upgrading or replacing hard drives, SSDs, or optical drives who need additional cable length or flexibility in connecting to the motherboard or power supply.
