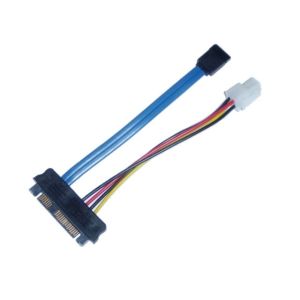

SATA 22 Pin Male to SATA 7 Pin and 15 Pin Female 1 Meter

‌Overview

The SATA 22 Pin Male to SATA 7 Pin and 15 Pin Female Cable is designed to extend and split a single SATA connection into separate data and power connections. This 1-meter cable provides flexibility and convenience for connecting SATA drives to motherboards or SATA controllers, especially in larger systems or custom builds where additional length is required.

Technical Specifications

Connector Type:

Connector A: SATA 22-pin male (integrated data and power)

Connector B1: SATA 7-pin female (data)

Connector B2: SATA 15-pin female (power)

Cable Length:

1 meter (approximately 39.37 inches)

Data Transfer Rate:

Supports SATA III (6.0 Gbps), SATA II (3.0 Gbps), and SATA I (1.5 Gbps) standards

Power Transmission:

Provides standard SATA power through the 15-pin female connector

Cable Construction:

Conductors: High-purity copper conductors for optimal signal integrity and power delivery

Insulation: Durable PVC insulation to ensure flexibility and protection against electrical interference

Shielding: Adequate shielding to minimize electromagnetic interference (EMI) and crosstalk

Connector Design:

Molded connectors with latch mechanisms to ensure secure and stable connections

Compatibility:

Compatible with all SATA devices, including hard drives, SSDs, and optical drives

Operating Temperature Range:

-20°C to 80°C (-4°F to 176°F), suitable for use in various environmental conditions

Compliance:

RoHS (Restriction of Hazardous Substances) compliant, ensuring the cable is free from hazardous materials

Applications

Internal Storage Solutions: Ideal for connecting SATA drives to motherboards or SATA controllers in desktop PCs, servers, and workstations

System Upgrades: Useful for upgrading or replacing existing SATA connections with additional length for easier routing

Custom PC Builds: Suitable for custom PC builds where precise cable management and additional length are needed for optimal routing

Data Centers and Servers: Perfect for use in enterprise environments where multiple SATA devices need to be connected and powered efficiently

Key Features

Extended Length: The 1-meter length provides ample reach for connecting SATA devices within larger cases or complex setups

High-Speed Data Transfer: Supports the latest SATA III standard for fast and reliable data transfer rates up to 6.0 Gbps

Secure Connections: Features molded connectors with latch mechanisms to prevent accidental disconnections and ensure stable connections

Durable and Flexible: Constructed with high-quality materials to ensure longevity and ease of installation, even in tight spaces

Versatile Compatibility: Compatible with all SATA devices, providing flexibility for various internal configurations
