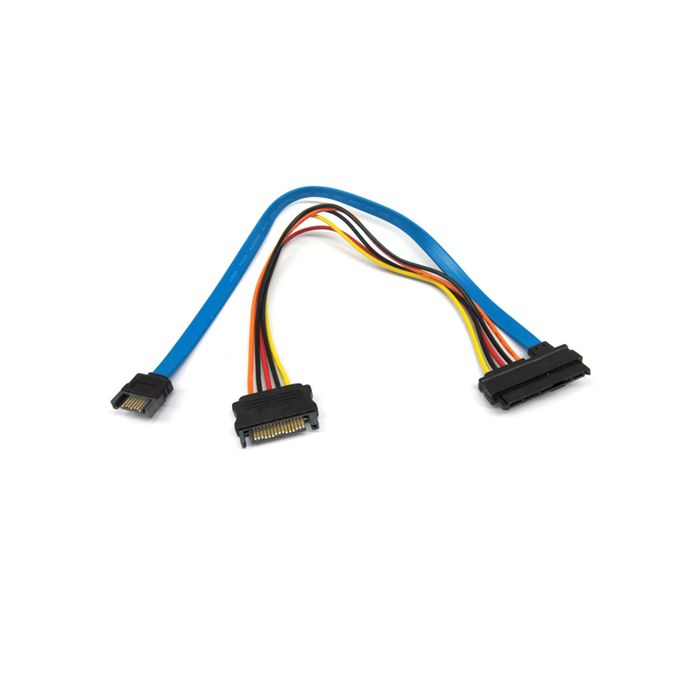

SAS 29pin Female to 15 Pin SATA Male with 7 Pin SATA Male 12 Inch Cable

‌SAS 29-pin Female to 15-pin SATA Male with 7-pin SATA Male, is typically used for connecting Serial Attached SCSI (SAS) hard drives to SATA power and data connectors.

Cable Details:

SAS 29-Pin Female:

Function: This connects to a 29-pin SAS interface on the hard drive.

Pins: The 29-pin SAS connector includes both power (15 pins) and data (14 pins), which is why it’s more compact compared to using separate cables for power and data like in SATA.

15-Pin SATA Male:

Function: This is for the power connection and plugs into a standard 15-pin SATA power connector, typically coming from a power supply unit (PSU).

7-Pin SATA Male:

Function: This is for the data connection and plugs into a standard 7-pin SATA data port, which is usually on a motherboard or an HBA (Host Bus Adapter).

Usage:

This cable is designed for situations where you have a SAS drive but want to connect it to SATA ports, which are more common in standard desktop setups.

It provides a way to use the power from the SATA PSU connector and the data connection from a SATA data port on the motherboard or controller card.

Length:

The cable length mentioned is 12 inches, providing some flexibility for installation but keeping the connection distance short, which is good for maintaining signal integrity.
