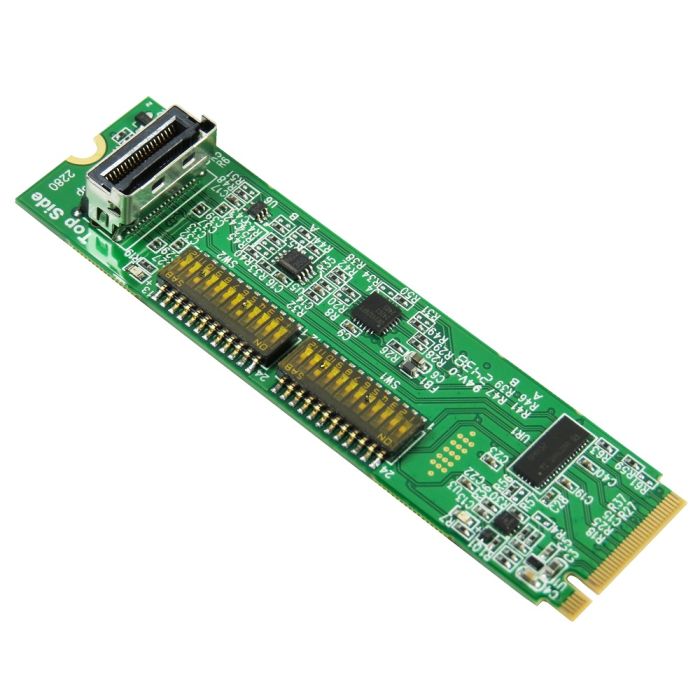

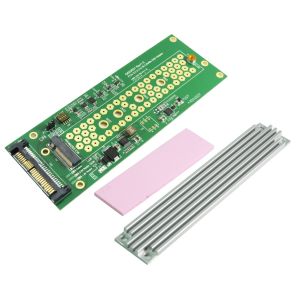

M.2 M-key PCIe 5.0 with ReDriver to MCIO 38P

Features :

• Built- in 3.3V, 3A Load Switch with Reverse Current Protection and Controlled Turn-On

• MCIO 38P (SFF-TA-1016) to M.2 PCIe 5.0 convert

• Built- in MCIO 38P connector with 30u”(0.76um) min Au mating area plating

• Built- in PCIe ReDriver to extend PCIe 5.0, 32GT/s differential pair signals

• Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable

○ The REFCLKp signal, it is tied to MCIO 38P B11 pin

○ The REFCLKn signal, it is tied to MCIO 38P B12 pin

• Built- in SMBus repeater and Voltage level shift with Hot swappable level translating

○ The SMCLK signal, it is tied to MCIO 38P A8 pin

○ The SMDAT signal, it is tied to MCIO 38P A9 pin

• Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin

• The WAKE# signal, it is tied to MCIO 38P B8 pin

• The CLKREQ# signal, it is tied to MCIO 38P A12 pin

• The PWRDIS signal signal, it is tied to MCIO 38P B9 pin

• LED1 Green ON indicates 3.3V ready

• LED2 Red from ON to OFF indicates PERST# signals normal

Specifications :

• PCI Express Base Specification Rev 5.0

• PCIe_CEM_R5.1_V1.0_08072023_NCB

• Compliant with SFF-TA-1016 Rev 1.2

• PCI_Express_M.2_Spec_Rev5.1

Micro SATA Cables PN # MCIO-2251-M2
