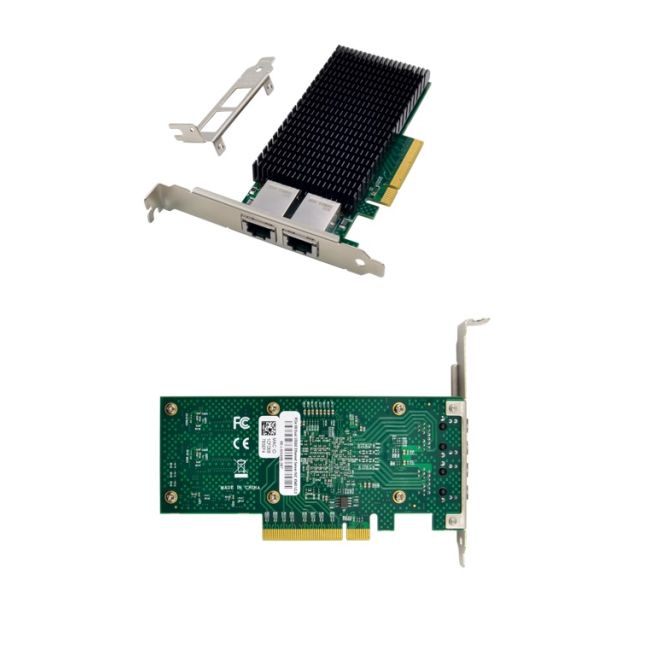

PCIe x8 X540-T2 Dual- 10G RJ45 Copper Server NIC Chipset: Intel X540-AT2

‌PCIe x8 X540-T2 Dual- 10G RJ45 Copper Server NIC Chipset: Intel X540-AT2

10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning.

▪ Low Cost, Low Power, 10 Gigabit Ethernet (10GbE) Performance for the Entire Datacenter

▪ Standard CAT-6a Cabling with RJ45 Connectors

▪ Backward Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE

▪ Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports

▪ Unified Networking Delivering LAN, iSCSI, and FCoE in One Low Cost CNA

▪ Industry Dual-Port 10GBASE-T Adapter with Single-Chip Solution with Integrated MAC + PHY

▪ Reliable and proven 10 Gigabit Ethernet technology from Intel Corporation

Specifications :

• PCI Express v2.1, 5.0 GT/s, x8 lanes

• Dual Port 10GbE adapters

• Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS

• Features Link Aggregation Control Protocol (LACP)

• Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)

• IEEE 802.3an/ab and 10G Ethernet Specification Compliance

• PXE、iSCSI 、FCoE boot

• Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE Network Virtualization

• Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
